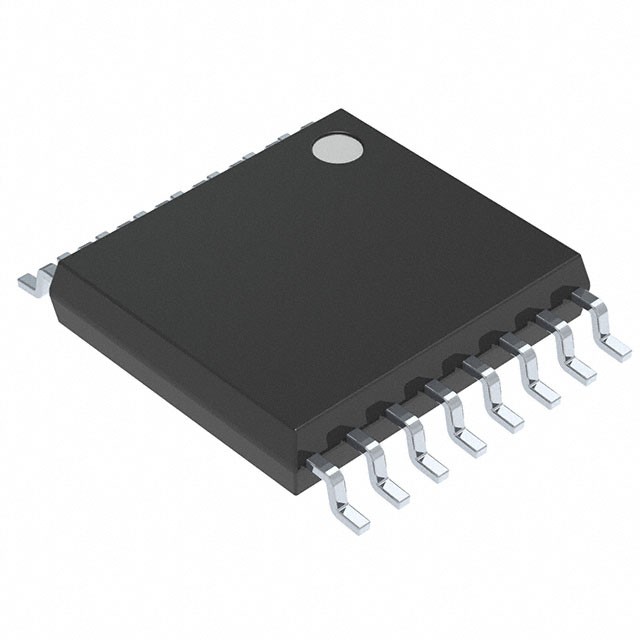

NCP1096PAG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCP1096PAG
Product Number:
NCP1096PAG
MFR Standard Lead Time:
Package/Case:
16-TSSOP (0.173\, 4.40mm Width) Exposed Pad
Detailed Description:
IC POE CNTRL 1 CHANNEL 16TSSOP
Datasheet:
Descnt:
Power Over Ethernet Controller 1 Channel 802.3at (PoE+), 802.3af (PoE), 802.3bt 16-TSSOP-EP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Type
Controller (PD), DC/DC
Number of Channels
1
Power - Max
90 W
Internal Switch(s)
Yes
Auxiliary Sense
Yes
Standards
802.3at (PoE+), 802.3af (PoE), 802.3bt
Voltage - Supply
0V ~ 57V
Current - Supply
336.7µA
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package
16-TSSOP-EP
Base Product Number
NCP1096
-
Documents & Media
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration NCP1096PAG
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
96
