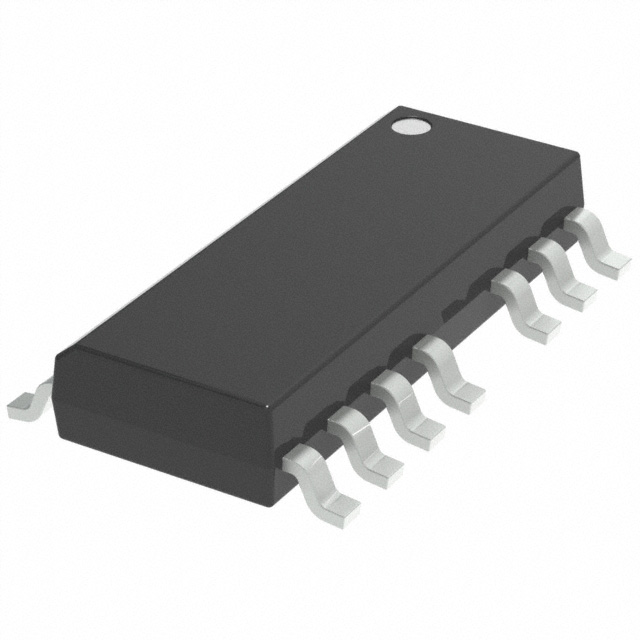

NCP1398BDR2G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCP1398BDR2G
Product Number:
NCP1398BDR2G
MFR Standard Lead Time:
Package/Case:
16-SOIC (0.154\, 3.90mm Width), 15 Leads
Detailed Description:
IC OFFLINE SW HALF-BRDG 16SOIC
Datasheet:
Descnt:
Converter Offline Half-Bridge Topology 50kHz ~ 750kHz 16-SOIC
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Breakdown
-
Topology
Half-Bridge
Voltage - Start Up
10.5 V
Voltage - Supply (Vcc/Vdd)
9.5V ~ 20V
Duty Cycle
50%
Frequency - Switching
50kHz ~ 750kHz
Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features
Frequency Control, Soft Start
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
16-SOIC (0.154", 3.90mm Width), 15 Leads
Supplier Device Package
16-SOIC
Mounting Type
Surface Mount
Base Product Number
NCP1398
-
Documents & Media
PCN Design/Specification
Copper Wire Revision 24/Feb/2015
Copper Wire Update 13/Jan/2015
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
2,500
