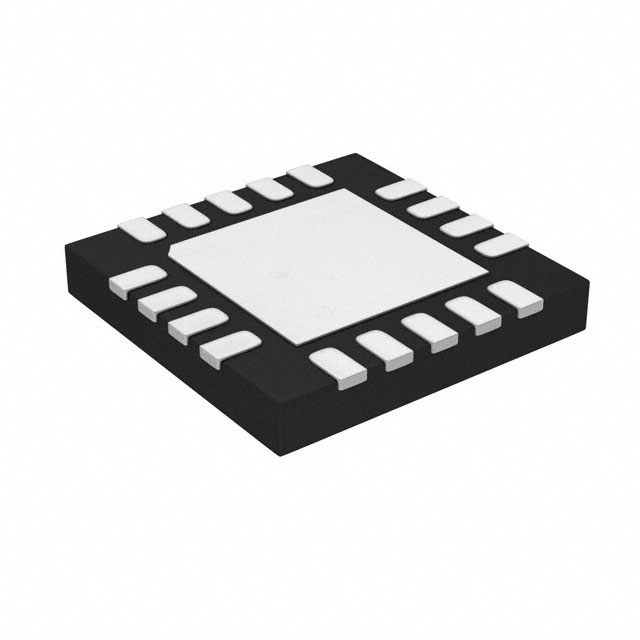

NCP4545IMNTWG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCP4545IMNTWG
Product Number:
NCP4545IMNTWG
MFR Standard Lead Time:
Package/Case:
18-VFQFN Exposed Pad
Detailed Description:
IC PWR SWITCH N-CHAN 1:1 18QFN
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 10.5A 18-QFN (3x3)
In Stock
3125
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
ecoSWITCH™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
3V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
10.5A
Rds On (Typ)
4.9mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled
Fault Protection
-
Operating Temperature
0°C ~ 70°C (TA)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Supplier Device Package
18-QFN (3x3)
Package / Case
18-VFQFN Exposed Pad
Base Product Number
NCP4545
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
