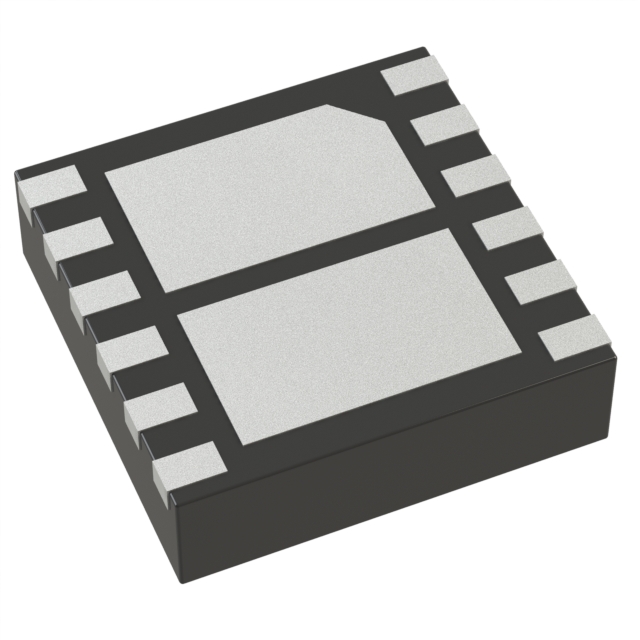

NCP45760IMN24RTWG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCP45760IMN24RTWG
Product Number:
NCP45760IMN24RTWG
MFR Standard Lead Time:
45 Weeks
Package/Case:
12-VFDFN Exposed Pad
Detailed Description:
760 MCM
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 20A 12-DFN (3x3)
In Stock
3769
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
ecoSWITCH™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
-
Voltage - Load
3V ~ 24V
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
Current - Output (Max)
20A
Rds On (Typ)
17mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled
Fault Protection
Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO
Operating Temperature
-40°C ~ 85°C (TA)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Supplier Device Package
12-DFN (3x3)
Package / Case
12-VFDFN Exposed Pad
Base Product Number
NCP45760
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
3A991A2
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
