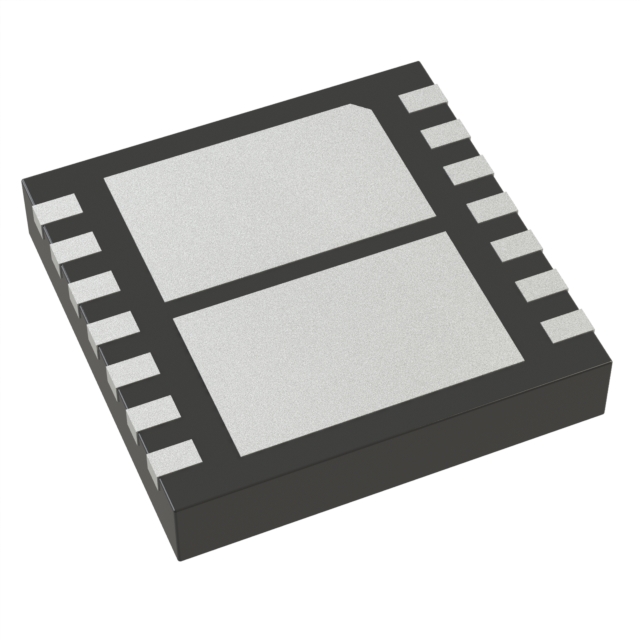

NCP45790IMN24RTWG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCP45790IMN24RTWG
Product Number:
NCP45790IMN24RTWG
MFR Standard Lead Time:
45 Weeks
Package/Case:
14-VFDFN Exposed Pad
Detailed Description:
SOLITUDE 790 MCM
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 8A 14-DFN (4x4)
In Stock
21041
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
ecoSWITCH™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
-
Voltage - Load
3V ~ 24V
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
Current - Output (Max)
8A
Rds On (Typ)
5.6mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled
Fault Protection
Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO
Operating Temperature
-40°C ~ 85°C (TA)
Grade
-
Qualification
-
Mounting Type
Surface Mount
Supplier Device Package
14-DFN (4x4)
Package / Case
14-VFDFN Exposed Pad
Base Product Number
NCP45790
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
