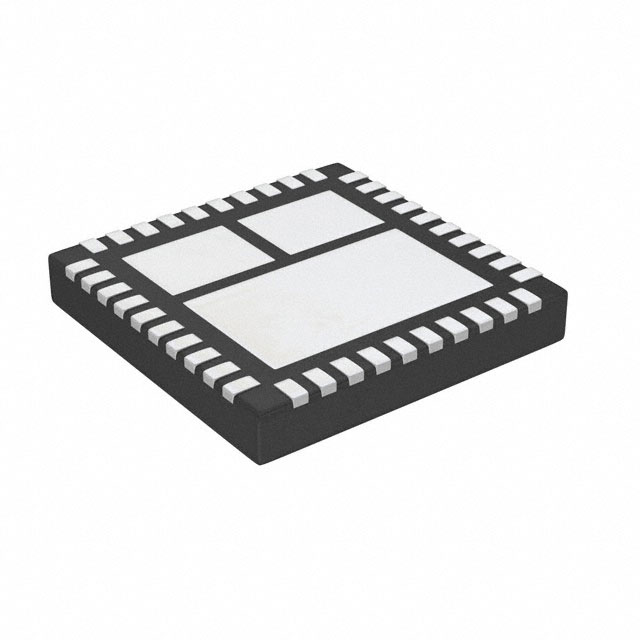

NCP5339MNTXG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCP5339MNTXG
Product Number:
NCP5339MNTXG
MFR Standard Lead Time:
Package/Case:
40-VFQFN Exposed Pad
Detailed Description:
IC HALF BRIDGE DRIVER 50A 40QFN
Datasheet:
Descnt:
Half Bridge Driver DC-DC Converters NMOS 40-QFN (6x6)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Half Bridge
Applications
DC-DC Converters
Interface
PWM
Load Type
Inductive
Technology
NMOS
Rds On (Typ)
-
Current - Output / Channel
50A
Current - Peak Output
80A
Voltage - Supply
4.5V ~ 5.5V
Voltage - Load
4.5V ~ 16V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Bootstrap Circuit
Fault Protection
Over Temperature, UVLO
Mounting Type
Surface Mount
Package / Case
40-VFQFN Exposed Pad
Supplier Device Package
40-QFN (6x6)
Base Product Number
NCP5339
-
Documents & Media
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration NCP5339MNTXG
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
