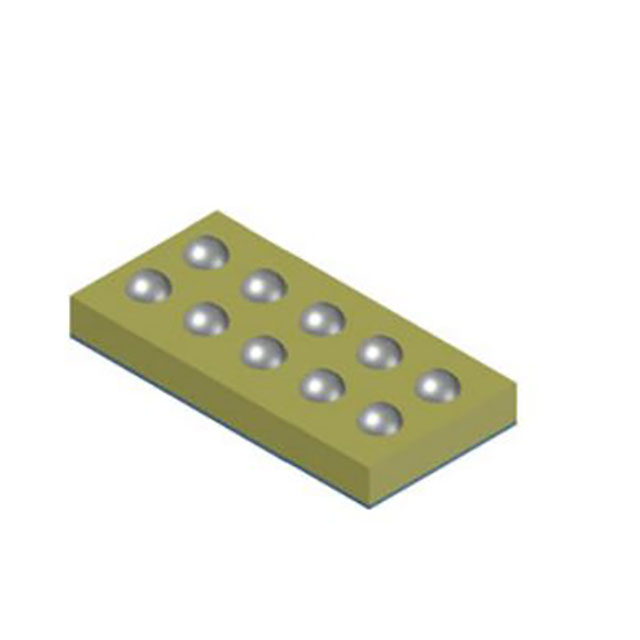

NCP59744FCTCADJT2G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCP59744FCTCADJT2G
Product Number:
NCP59744FCTCADJT2G
MFR Standard Lead Time:
Package/Case:
10-XFBGA, WLCSP
Detailed Description:
IC REG LINEAR POS ADJ 3A 10WLCSP
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 10-WLCSP (2.08x1.03)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Obsolete
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
3.6V
Voltage Dropout (Max)
1.5V 3A
Current - Output
3A
Current - Quiescent (Iq)
2 mA
Current - Supply (Max)
2 mA
PSRR
72dB ~ 50dB (1kHz ~ 1MHz)
Control Features
Enable, Power Good, Soft Start
Protection Features
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
10-XFBGA, WLCSP
Supplier Device Package
10-WLCSP (2.08x1.03)
Base Product Number
NCP59744
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
