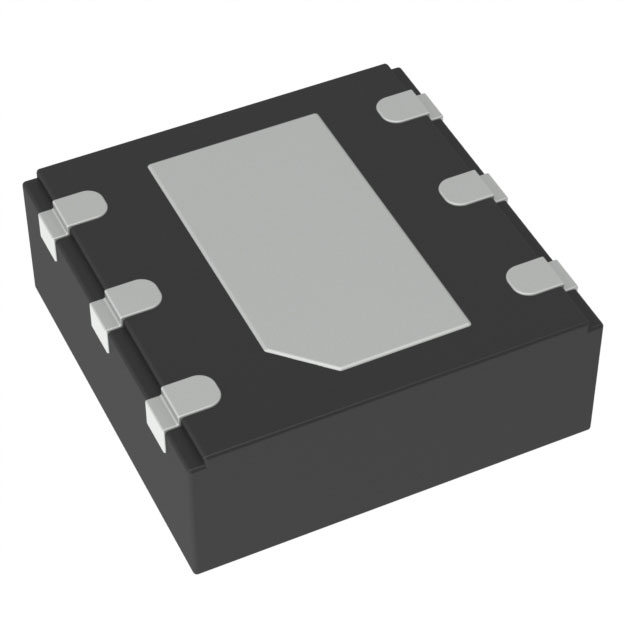

NCV68261MTWAITBG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCV68261MTWAITBG
Product Number:
NCV68261MTWAITBG
MFR Standard Lead Time:
49 Weeks
Package/Case:
6-WDFN Exposed Pad
Detailed Description:
IDEAL DIODE AND HS SWITCH NMOS D
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 6-WDFNW (2x2)
In Stock
282
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
3V ~ 32V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
-
Rds On (Typ)
2.4Ohm
Input Type
Non-Inverting
Features
Load Discharge
Fault Protection
Over Voltage, Reverse Current, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount, Wettable Flank
Supplier Device Package
6-WDFNW (2x2)
Package / Case
6-WDFN Exposed Pad
Base Product Number
NCV68261
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
