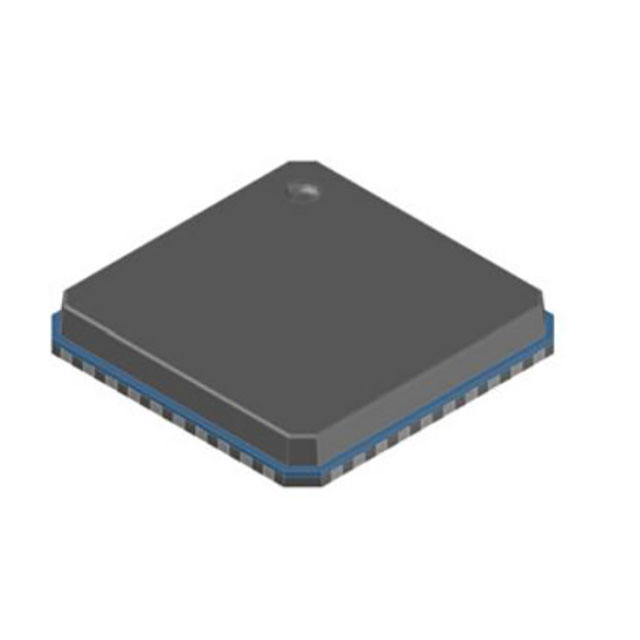

NCV7546MWTXG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCV7546MWTXG
Product Number:
NCV7546MWTXG
MFR Standard Lead Time:
47 Weeks
Package/Case:
40-VFQFN Exposed Pad
Detailed Description:
AUTOMOTIVE DRIVER
Datasheet:
Descnt:
Bipolar Motor Driver NMOS PWM, SPI 40-QFNW (6x6)
In Stock
2500
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
Brushed DC
Function
Controller - Speed
Output Configuration
Pre-Driver - Half Bridge (6)
Interface
PWM, SPI
Technology
NMOS
Step Resolution
-
Applications
-
Current - Output
-
Voltage - Supply
4.5V ~ 5.5V
Voltage - Load
7V ~ 18V
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Mounting Type
Surface Mount
Package / Case
40-VFQFN Exposed Pad
Supplier Device Package
40-QFNW (6x6)
Base Product Number
NCV7546
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
