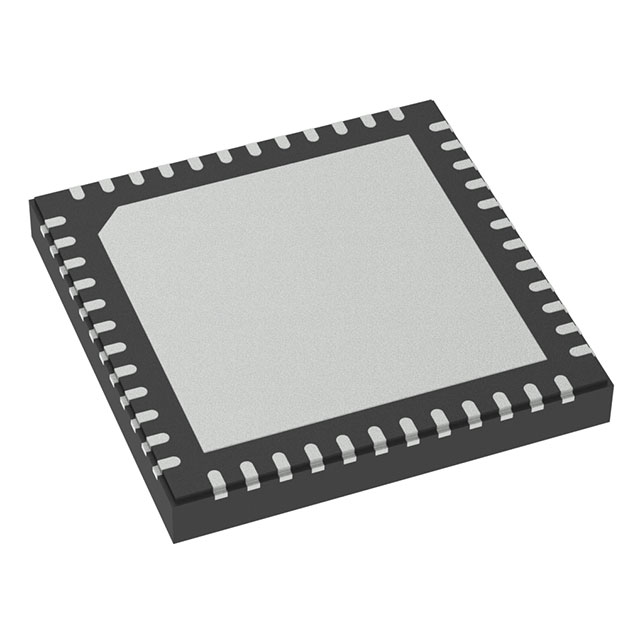

NCV7547MWTXG onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCV7547MWTXG
Product Number:
NCV7547MWTXG
MFR Standard Lead Time:
47 Weeks
Package/Case:
48-VFQFN Exposed Pad
Detailed Description:
IC HALF BRIDGE DRIVER 48QFNW
Datasheet:
Descnt:
Half Bridge (7) Driver General Purpose NMOS 48-QFNW (7x7)
In Stock
2495
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge (7)
Applications
General Purpose
Interface
PWM, SPI
Load Type
Capacitive and Resistive
Technology
NMOS
Rds On (Typ)
-
Current - Output / Channel
-
Current - Peak Output
-
Voltage - Supply
4.5V ~ 5.5V
Voltage - Load
7V ~ 18V
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Features
Charge Pump
Fault Protection
Over Load
Mounting Type
Surface Mount, Wettable Flank
Package / Case
48-VFQFN Exposed Pad
Supplier Device Package
48-QFNW (7x7)
Base Product Number
NCV7547
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
