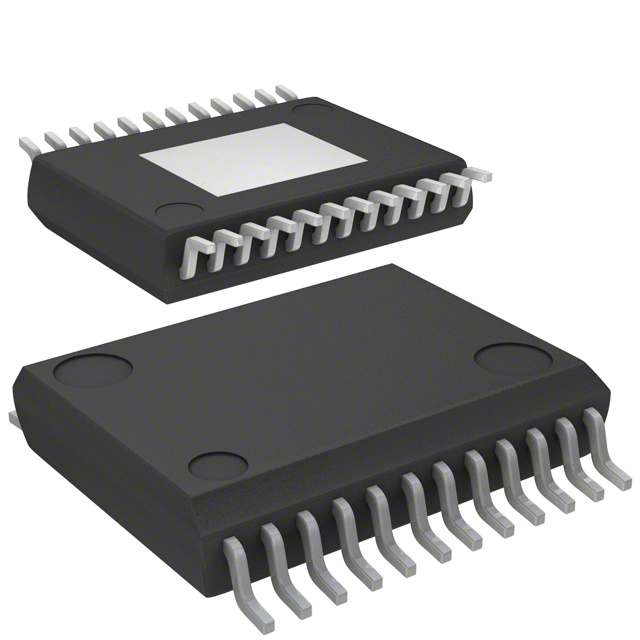

NCV7726DQBR2G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCV7726DQBR2G
Product Number:
NCV7726DQBR2G
MFR Standard Lead Time:
47 Weeks
Package/Case:
24-LSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
IC HALF BRIDGE DRVR 500MA 24SSOP
Datasheet:
Descnt:
Half Bridge (12) Driver DC Motors, General Purpose NMOS 24-SSOP-EP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge (12)
Applications
DC Motors, General Purpose
Interface
Logic, SPI
Load Type
Inductive
Technology
NMOS
Rds On (Typ)
850mOhm LS, 850mOhm HS
Current - Output / Channel
500mA
Current - Peak Output
1.1A
Voltage - Supply
3.15V ~ 5.25V
Voltage - Load
5.5V ~ 32V
Operating Temperature
-40°C ~ 125°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Features
Charge Pump
Fault Protection
Over Current, Over Temperature, Over Voltage, UVLO
Mounting Type
Surface Mount
Package / Case
24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package
24-SSOP-EP
Base Product Number
NCV7726
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
