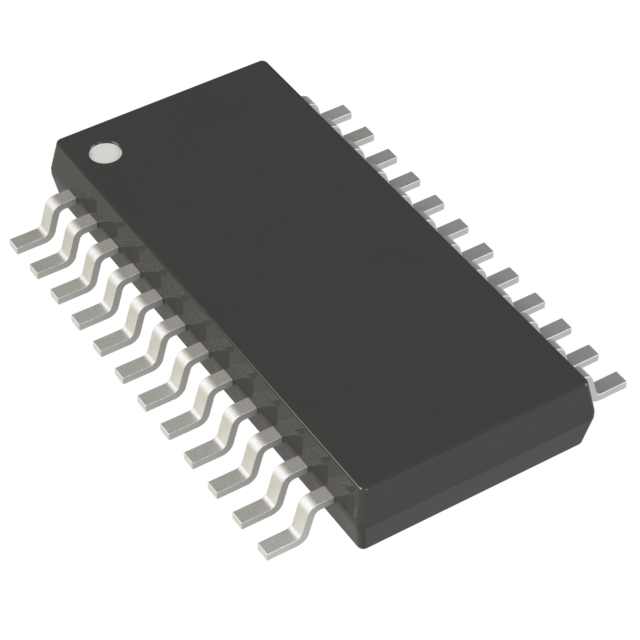

NCV7728DPAR2G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCV7728DPAR2G
Product Number:
NCV7728DPAR2G
MFR Standard Lead Time:
Package/Case:
24-SSOP (0.154\, 3.90mm Width)
Detailed Description:
IC HALF BRIDGE DRVR 550MA 24SSOP
Datasheet:
Descnt:
Half Bridge (6) Driver DC Motors, General Purpose DMOS 24-SSOP
In Stock
2500
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Not For New Designs
Output Configuration
Half Bridge (6)
Applications
DC Motors, General Purpose
Interface
SPI
Load Type
Capacitive
Technology
DMOS
Rds On (Typ)
1Ohm LS + HS
Current - Output / Channel
550mA
Current - Peak Output
550mA
Voltage - Supply
3.15V ~ 5.25V
Voltage - Load
5.5V ~ 28V
Operating Temperature
-40°C ~ 125°C (TJ)
Features
-
Fault Protection
Current Limiting, Over Temperature, Over Voltage, UVLO
Mounting Type
Surface Mount
Package / Case
24-SSOP (0.154", 3.90mm Width)
Supplier Device Package
24-SSOP
Base Product Number
NCV7728
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
