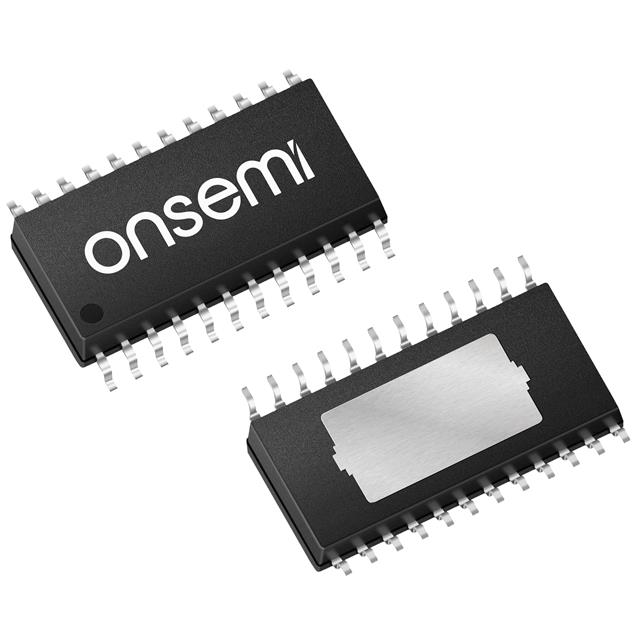

NCV7755DQR2G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NCV7755DQR2G
Product Number:
NCV7755DQR2G
MFR Standard Lead Time:
47 Weeks
Package/Case:
24-LSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
OCTAL HIGH-SIDE DRIVER THAT CAN
Datasheet:
Descnt:
Power Switch/Driver 1:4 N-Channel 2.3A 24-SSOP-EP
In Stock
2428
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
Relay, Solenoid Driver
Number of Outputs
8
Ratio - Input:Output
1:4
Output Configuration
High Side
Output Type
N-Channel
Interface
SPI
Voltage - Load
3V ~ 28V
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
Current - Output (Max)
2.3A
Rds On (Typ)
900mOhm
Input Type
Non-Inverting
Features
Auto Restart, Internal PWM, Latch Function, Slew Rate Controlled
Fault Protection
Current Limiting (Adjustable), Over Load, Over Temperature, Reverse Battery, UVLO
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
24-SSOP-EP
Package / Case
24-LSSOP (0.154", 3.90mm Width) Exposed Pad
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
