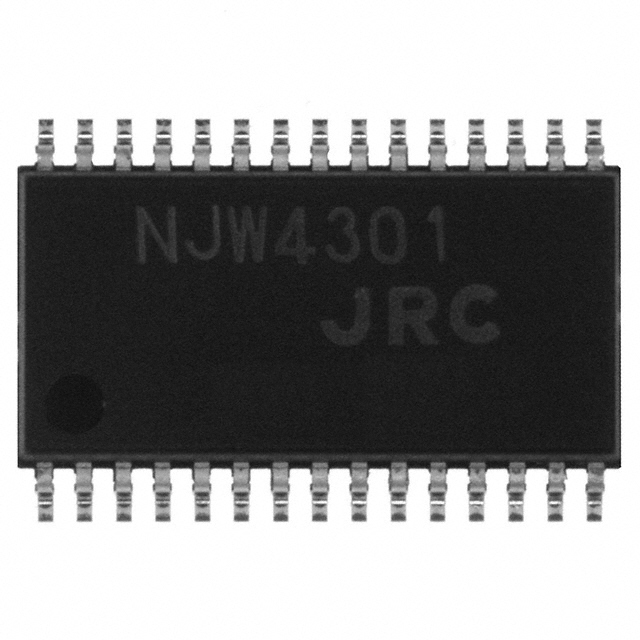

NJW4301M Nisshinbo Micro Devices Inc.
Favorite
Compare
Manufacturer:
Nisshinbo Micro Devices Inc.
MFR Product Number:
NJW4301M
Product Number:
NJW4301M
MFR Standard Lead Time:
Package/Case:
30-SDMP
Detailed Description:
IC HALF BRIDGE DRIVER 30SDMP
Datasheet:
Descnt:
Half Bridge (4) Driver DC Motors, General Purpose Bi-CMOS 30-SDMP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Nisshinbo Micro Devices Inc.
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Half Bridge (4)
Applications
DC Motors, General Purpose
Interface
Logic
Load Type
Inductive
Technology
Bi-CMOS
Rds On (Typ)
-
Current - Output / Channel
-
Current - Peak Output
-
Voltage - Supply
4V ~ 12V
Voltage - Load
4V ~ 12V
Operating Temperature
-40°C ~ 85°C (TA)
Features
-
Fault Protection
Over Temperature
Mounting Type
Surface Mount
Package / Case
30-SDMP
Supplier Device Package
30-SDMP
Base Product Number
NJW4301
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
25
