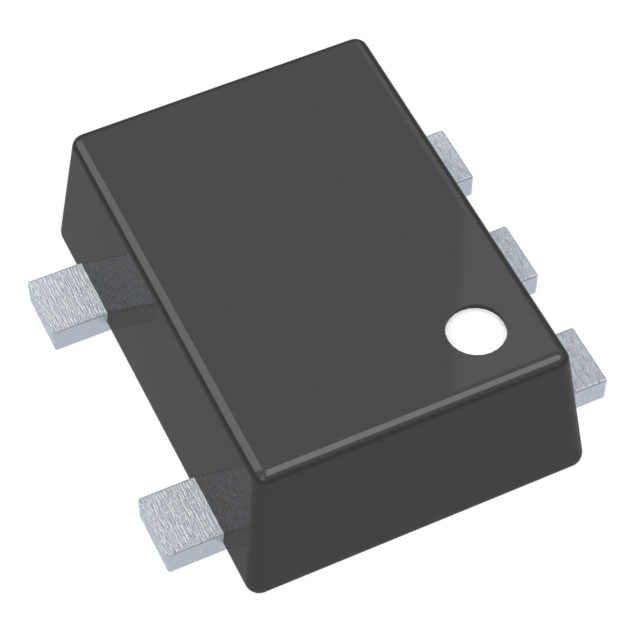

NL17SHT04P5T5G onsemi
Favorite
Compare
Manufacturer:
onsemi
MFR Product Number:
NL17SHT04P5T5G
Product Number:
NL17SHT04P5T5G
MFR Standard Lead Time:
Package/Case:
SOT-953
Detailed Description:
IC INVERTER 1CH 1-INP SOT953
Datasheet:
Descnt:
Inverter IC 1 Channel SOT-953
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
onsemi
Series
17SHT
Packaging
Tape & Reel (TR)
Part Status
Active
Logic Type
Inverter
Number of Circuits
1
Number of Inputs
1
Features
-
Voltage - Supply
3V ~ 5.5V
Current - Quiescent (Max)
1 µA
Current - Output High, Low
8mA, 8mA
Input Logic Level - Low
0.53V ~ 0.8V
Input Logic Level - High
1.4V ~ 2V
Max Propagation Delay V, Max CL
7.7ns 5V, 50pF
Operating Temperature
-55°C ~ 125°C
Mounting Type
Surface Mount
Supplier Device Package
SOT-953
Package / Case
SOT-953
Base Product Number
17SHT04
-
Documents & Media
Datasheets
Environmental Information
onsemi RoHS
onsemi REACH
Material Declaration NL17SHT04P5T5G
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
8,000
