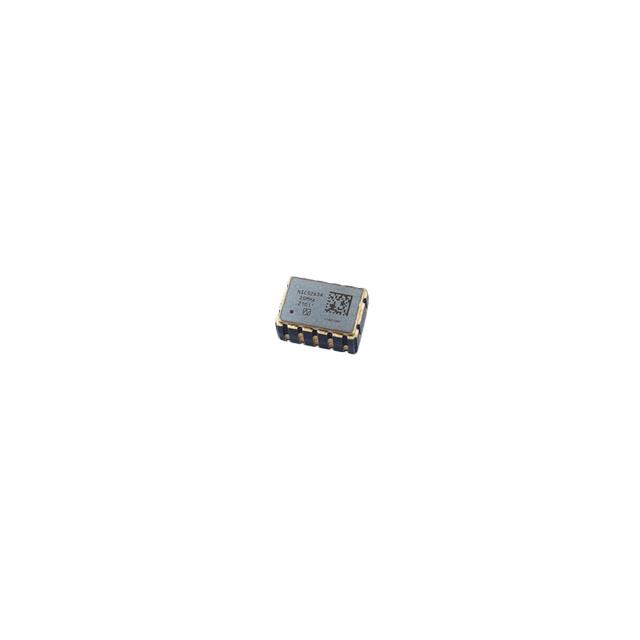

NSC5263B-20M NDK America, Inc.
Favorite
Compare
Manufacturer:
NDK America, Inc.
MFR Product Number:
NSC5263B-20M
Product Number:
NSC5263B-20M
MFR Standard Lead Time:
24 Weeks
Package/Case:
10-SMD, No Lead
Detailed Description:
OSC OCXO 20MHZ CMOS SMD
Datasheet:
Descnt:
20 MHz OCXO LVCMOS, Square Wave Oscillator 3.3V 10-SMD, No Lead
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
NDK America, Inc.
Series
NH7050SA
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Base Resonator
Crystal
Type
OCXO
Frequency
20 MHz
Function
-
Output
LVCMOS, Square Wave
Voltage - Supply
3.3V
Frequency Stability
±50ppb
Absolute Pull Range (APR)
-
Operating Temperature
-40°C ~ 95°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
-
Ratings
-
Mounting Type
Surface Mount
Package / Case
10-SMD, No Lead
Size / Dimension
0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)
0.142" (3.60mm)
Current - Supply (Disable) (Max)
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
Standard Package
100
