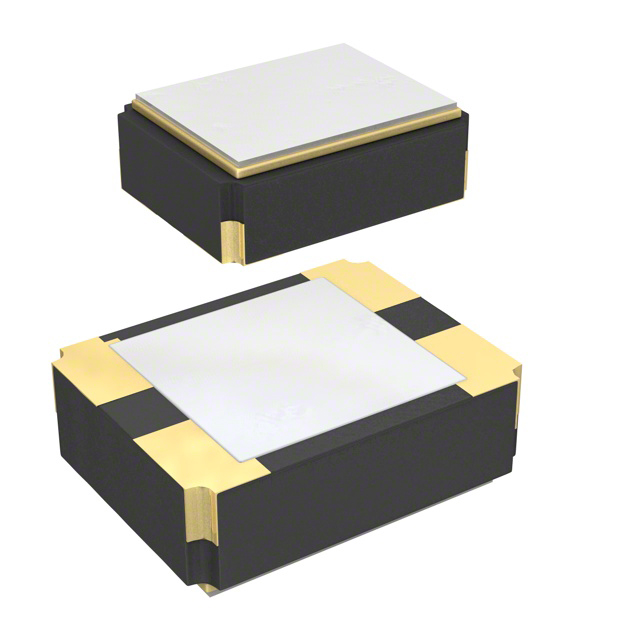

NT2016SA-16.368000 MHZ-NTG1 NDK America, Inc.
Favorite
Compare
Manufacturer:
NDK America, Inc.
MFR Product Number:
NT2016SA-16.368000 MHZ-NTG1
Product Number:
NT2016SA-16-368000-MHZ-NTG1
MFR Standard Lead Time:
Package/Case:
4-SMD, No Lead
Detailed Description:
XTAL OSC TCXO 16.3680MHZ SNWV
Datasheet:
Descnt:
16.368 MHz TCXO Clipped Sine Wave Oscillator 2.5V 4-SMD, No Lead
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
NDK America, Inc.
Series
NT2016SA
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Base Resonator
Crystal
Type
TCXO
Frequency
16.368 MHz
Function
-
Output
Clipped Sine Wave
Voltage - Supply
2.5V
Frequency Stability
±500ppb
Absolute Pull Range (APR)
-
Operating Temperature
-30°C ~ 85°C
Spread Spectrum Bandwidth
-
Current - Supply (Max)
1.5mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Size / Dimension
0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)
0.031" (0.80mm)
Current - Supply (Disable) (Max)
-
-
Documents & Media
PCN Obsolescence/ EOL
DK OBS NOTICE
Mult Devs EOL/Obs 05/Sep/2023
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
10,000
