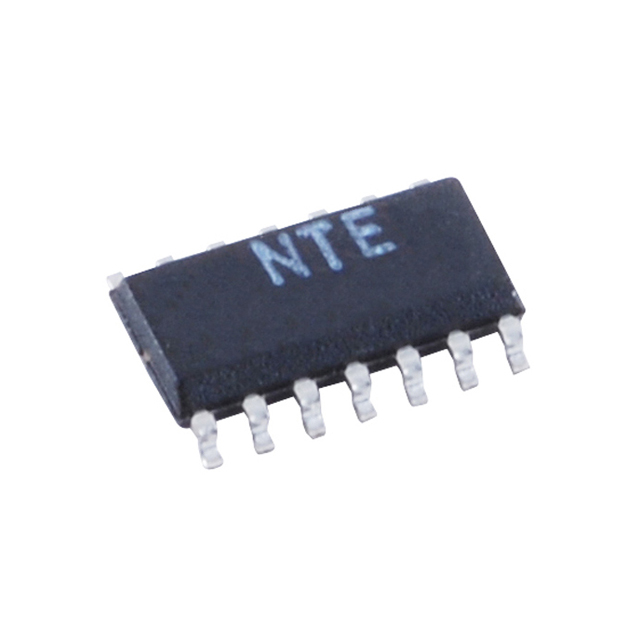

NTE4012BT NTE Electronics, Inc
Favorite
Compare
Manufacturer:
NTE Electronics, Inc
MFR Product Number:
NTE4012BT
Product Number:
NTE4012BT
MFR Standard Lead Time:
Package/Case:
14-SOIC (0.154\, 3.90mm Width)
Detailed Description:
IC GATE NAND 2CH 4-INP 14SOIC
Datasheet:
Descnt:
NAND Gate IC 2 Channel 14-SOIC
In Stock
1919
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
NTE Electronics, Inc
Series
4000B
Packaging
Bag
Part Status
Active
Logic Type
NAND Gate
Number of Circuits
2
Number of Inputs
4
Features
-
Voltage - Supply
3V ~ 18V
Current - Quiescent (Max)
1 µA
Current - Output High, Low
8.8mA, 8.8mA
Input Logic Level - Low
1.5V ~ 4V
Input Logic Level - High
3.5V ~ 11V
Max Propagation Delay V, Max CL
100ns 15V, 50pF
Operating Temperature
-55°C ~ 125°C
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Package / Case
14-SOIC (0.154", 3.90mm Width)
Base Product Number
NTE4012
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
Vendor Undefined
ECCN
EAR99
HTSUS
8542.31.0000
Additional Resources
Other Names
2368-NTE4012BT
Standard Package
1
