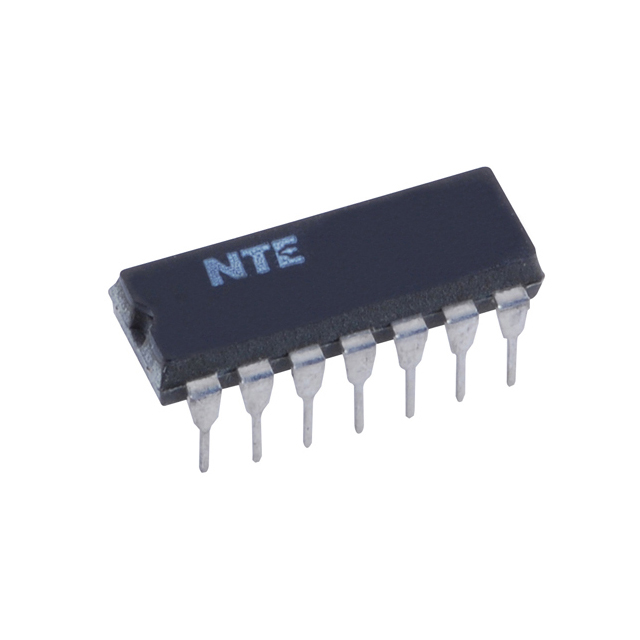

NTE4093B NTE Electronics, Inc
Favorite
Compare
Manufacturer:
NTE Electronics, Inc
MFR Product Number:
NTE4093B
Product Number:
NTE4093B
MFR Standard Lead Time:
Package/Case:
14-DIP (0.300\, 7.62mm)
Detailed Description:
IC GATE NAND 4CH 2-INP 14DIP
Datasheet:
Descnt:
NAND Gate IC 4 Channel Schmitt Trigger 14-DIP
In Stock
304
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
NTE Electronics, Inc
Series
4000B
Packaging
Bag
Part Status
Active
Logic Type
NAND Gate
Number of Circuits
4
Number of Inputs
2
Features
Schmitt Trigger
Voltage - Supply
3V ~ 18V
Current - Quiescent (Max)
1 µA
Current - Output High, Low
8.8mA, 8.8mA
Input Logic Level - Low
0.9V ~ 4V
Input Logic Level - High
3.6V ~ 10.8V
Max Propagation Delay V, Max CL
80ns 15V, 50pF
Operating Temperature
-55°C ~ 125°C
Mounting Type
Through Hole
Supplier Device Package
14-DIP
Package / Case
14-DIP (0.300", 7.62mm)
Base Product Number
NTE4093
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
Vendor Undefined
ECCN
EAR99
HTSUS
8542.31.0000
Additional Resources
Other Names
2368-NTE4093B
Standard Package
1
