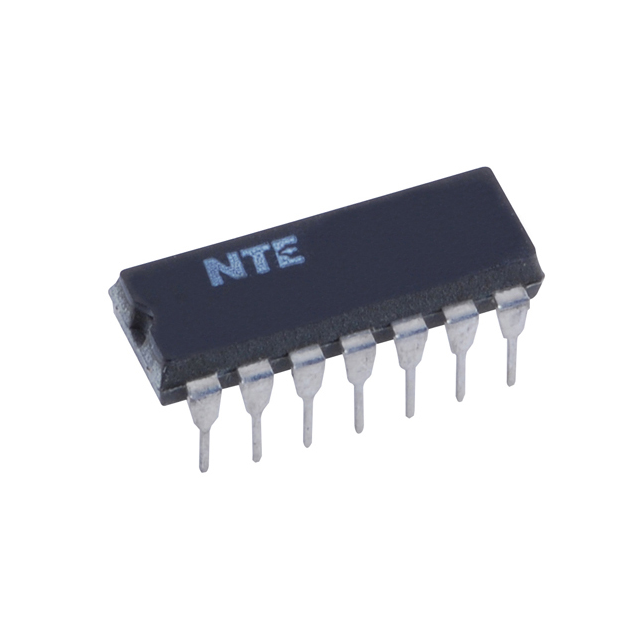

NTE7413 NTE Electronics, Inc
Favorite
Compare
Manufacturer:
NTE Electronics, Inc
MFR Product Number:
NTE7413
Product Number:
NTE7413
MFR Standard Lead Time:
Package/Case:
14-DIP (0.300\, 7.62mm)
Detailed Description:
IC GATE NAND 2CH 4-INP 14DIP
Datasheet:
Descnt:
NAND Gate IC 2 Channel Schmitt Trigger 14-PDIP
In Stock
64
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
NTE Electronics, Inc
Series
-
Packaging
Bag
Part Status
Active
Logic Type
NAND Gate
Number of Circuits
2
Number of Inputs
4
Features
Schmitt Trigger
Voltage - Supply
4.75V ~ 5.25V
Current - Quiescent (Max)
32 mA
Current - Output High, Low
800µA, 16mA
Input Logic Level - Low
0.6V ~ 1.1V
Input Logic Level - High
1.5V ~ 2V
Max Propagation Delay V, Max CL
27ns 5V, 15pF
Operating Temperature
0°C ~ 70°C
Mounting Type
Through Hole
Supplier Device Package
14-PDIP
Package / Case
14-DIP (0.300", 7.62mm)
Base Product Number
NTE7413
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8542.31.0000
-
Additional Resources
Other Names
2368-NTE7413
Standard Package
1
