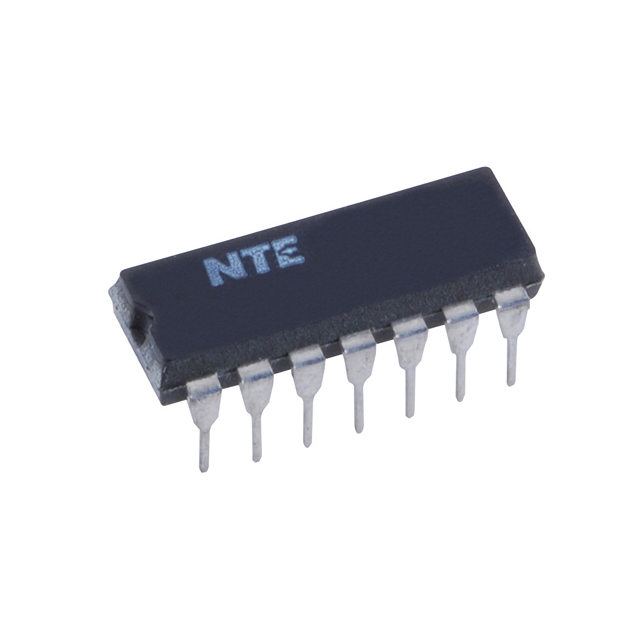

NTE74C14 NTE Electronics, Inc
Favorite
Compare
Manufacturer:
NTE Electronics, Inc
MFR Product Number:
NTE74C14
Product Number:
NTE74C14
MFR Standard Lead Time:
Package/Case:
14-DIP (0.300\, 7.62mm)
Detailed Description:
IC INVERT SCHMITT 6CH 1INP 14DIP
Datasheet:
Descnt:
Inverter IC 6 Channel Schmitt Trigger 14-DIP
In Stock
61
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
NTE Electronics, Inc
Series
74C
Packaging
Bag
Part Status
Active
Logic Type
Inverter
Number of Circuits
6
Number of Inputs
1
Features
Schmitt Trigger
Voltage - Supply
3V ~ 15V
Current - Quiescent (Max)
15 µA
Current - Output High, Low
8mA, 8mA
Input Logic Level - Low
0.7V ~ 2.1V
Input Logic Level - High
4.3V ~ 12.9V
Max Propagation Delay V, Max CL
200ns 10V, 50pF
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Through Hole
Supplier Device Package
14-DIP
Package / Case
14-DIP (0.300", 7.62mm)
Base Product Number
74C14
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
Vendor Undefined
ECCN
EAR99
HTSUS
8542.31.0000
Additional Resources
Other Names
2368-NTE74C14
Standard Package
1
