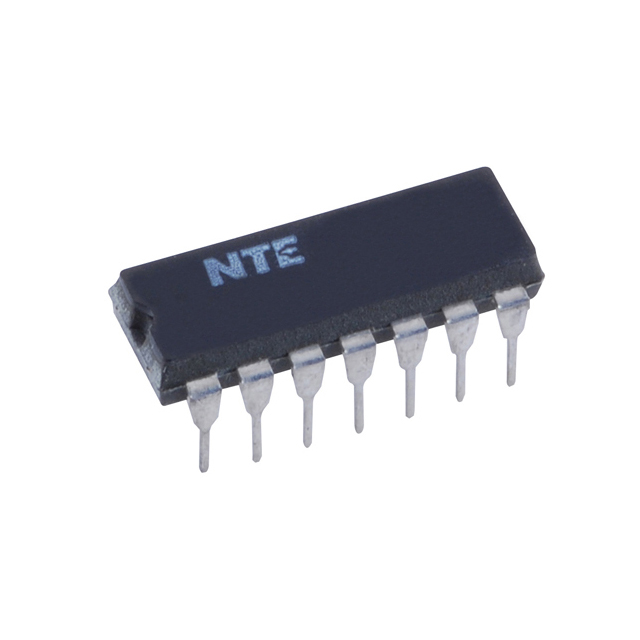

NTE74HC14 NTE Electronics, Inc
Favorite
Compare
Manufacturer:
NTE Electronics, Inc
MFR Product Number:
NTE74HC14
Product Number:
NTE74HC14
MFR Standard Lead Time:
Package/Case:
14-DIP (0.300\, 7.62mm)
Detailed Description:
IC INVERT SCHMITT 6CH 1INP 14DIP
Datasheet:
Descnt:
Inverter IC 6 Channel Schmitt Trigger 14-DIP
In Stock
565
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
NTE Electronics, Inc
Series
74HC
Packaging
Bag
Part Status
Active
Logic Type
Inverter
Number of Circuits
6
Number of Inputs
1
Features
Schmitt Trigger
Voltage - Supply
2V ~ 6V
Current - Quiescent (Max)
40 µA
Current - Output High, Low
5.2mA, 5.2mA
Input Logic Level - Low
0.3V ~ 1.2V
Input Logic Level - High
1.5V ~ 4.2V
Max Propagation Delay V, Max CL
19ns 6V, 50pF
Operating Temperature
-55°C ~ 125°C (TA)
Mounting Type
Through Hole
Supplier Device Package
14-DIP
Package / Case
14-DIP (0.300", 7.62mm)
Base Product Number
74HC14
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
ECCN
EAR99
HTSUS
8542.31.0000
-
Additional Resources
Other Names
2368-NTE74HC14
Standard Package
1
