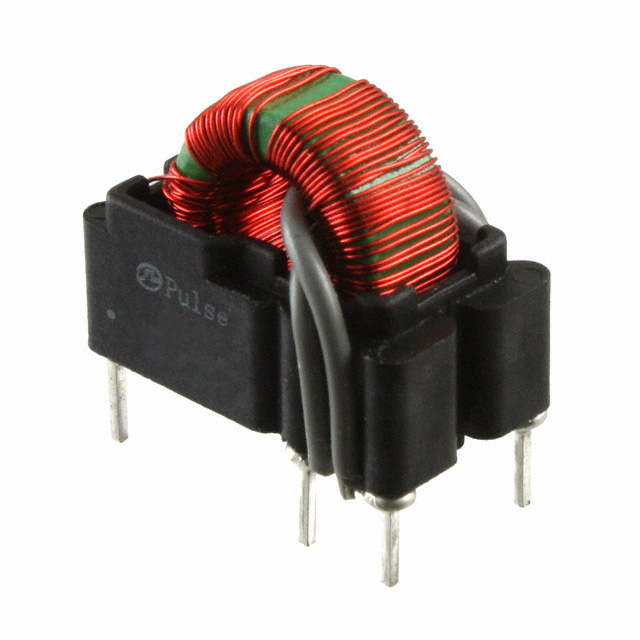

P0582NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
P0582NL
Product Number:
P0582NL
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 100:1:1 35A T/H
Datasheet:
Descnt:
35 A 100:1:1 Current Sense Transformer 50kHz ~ 500kHz 1.4Ohm Primary, 1.7mOhm Secondary 19 mH Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
THT
Packaging
Tray
Part Status
Active
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Current Rating (Amps)
35 A
Inductance
19 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
100:1:1
Current Ratio
-
DC Resistance (DCR)
1.4Ohm Primary, 1.7mOhm Secondary
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.810" L x 0.580" W (20.57mm x 14.73mm)
Height - Seated (Max)
0.750" (19.05mm)
Termination Style
PC Pin
Weight
0.011 lb (4.99 g)
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
80
