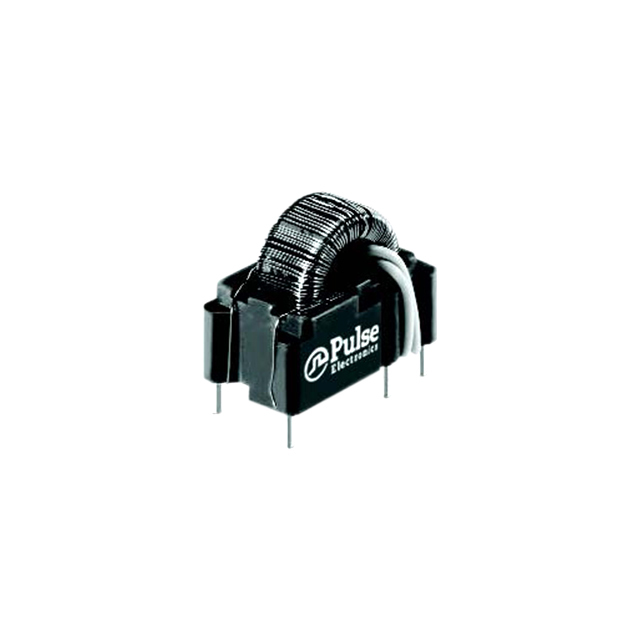

P0583NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
P0583NL
Product Number:
P0583NL
MFR Standard Lead Time:
14 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 50:1:1 36A T/H
Datasheet:
Descnt:
36 A 50:1:1 Current Sense Transformer 50kHz ~ 500kHz 700mOhm Primary, 1.7mOhm Secondary 5 mH Through Hole
In Stock
868
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
THT
Packaging
Tray
Part Status
Active
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Current Rating (Amps)
36 A
Inductance
5 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
50:1:1
Current Ratio
-
DC Resistance (DCR)
700mOhm Primary, 1.7mOhm Secondary
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.810" L x 0.580" W (20.57mm x 14.73mm)
Height - Seated (Max)
0.750" (19.05mm)
Termination Style
PC Pin
Weight
0.011 lb (4.99 g)
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
Standard Package
80
