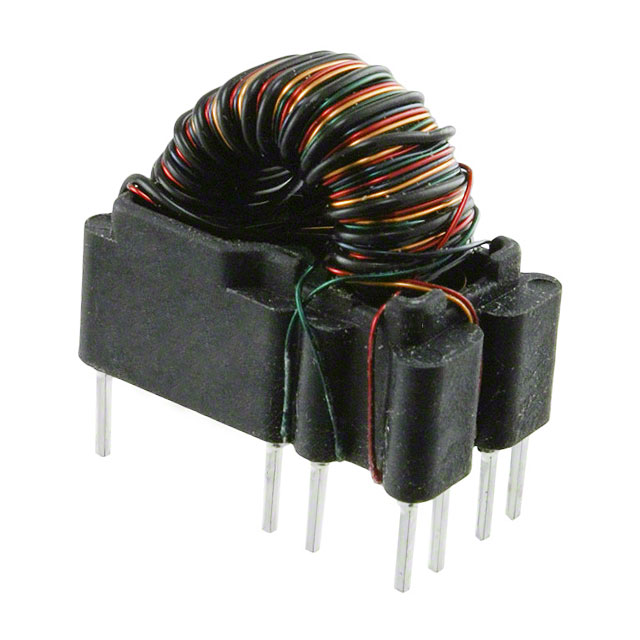

P0585NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
P0585NL
Product Number:
P0585NL
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1:1:1 450UH
Datasheet:
Descnt:
450µH Pulse Transformer 1:1:1:1:1 Through Hole
In Stock
1543
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
-
Inductance
450µH
ET (Volt-Time)
95VµS
Turns Ratio - Primary:Secondary
1:1:1:1:1
Mounting Type
Through Hole
Size / Dimension
0.810" L x 0.480" W (20.57mm x 12.19mm)
Height - Seated (Max)
0.750" (19.05mm)
Operating Temperature
-40°C ~ 125°C
Documents & Media
Product Drawings
Gate Drive Transformer
Schematic C
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
80
