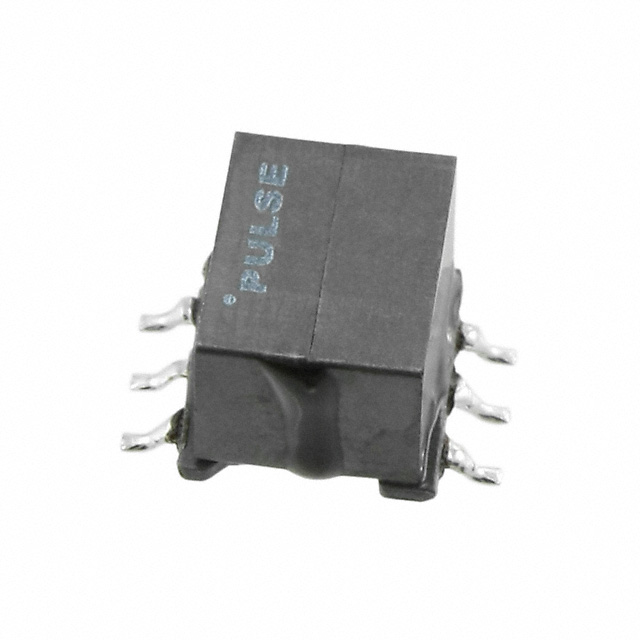

P1597NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
P1597NL
Product Number:
P1597NL
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR ISOL DC/DC CONV SMD
Datasheet:
Descnt:
Isolation For For DC/DC Converters SMPS Transformer 2000Vrms Isolation Surface Mount
In Stock
1335
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Isolation
Intended Chipset
LTC1535
Chipset Manufacturer
Linear Technology
Voltage - Primary
-
Voltage - Auxiliary
-
Voltage - Isolation
2000Vrms
Inductance Frequency
-
Frequency
-
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
0.453" L x 0.339" W (11.50mm x 8.60mm)
Height - Seated (Max)
0.354" (9.00mm)
Footprint
0.453" L x 0.512" W (11.50mm x 13.00mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
80
