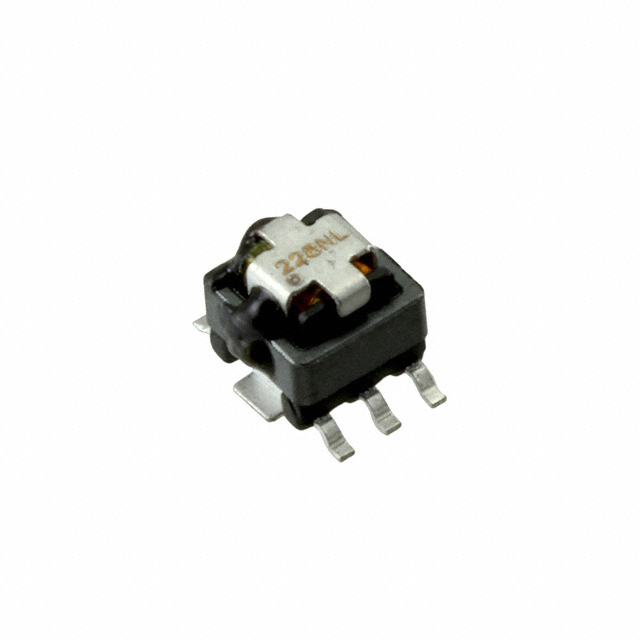

P8228NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
P8228NL
Product Number:
P8228NL
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:100 10A SMD
Datasheet:
Descnt:
10 A 1:100 Current Sense Transformer 50kHz ~ 1MHz 6mOhm Primary, 5.5Ohm Secondary 2 mH Surface Mount
In Stock
78
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
P822X
Packaging
Tray
Part Status
Active
Frequency Range
50kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
10 A
Inductance
2 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:100
Current Ratio
-
DC Resistance (DCR)
6mOhm Primary, 5.5Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max)
0.190" (4.83mm)
Termination Style
Gull Wing
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
120
