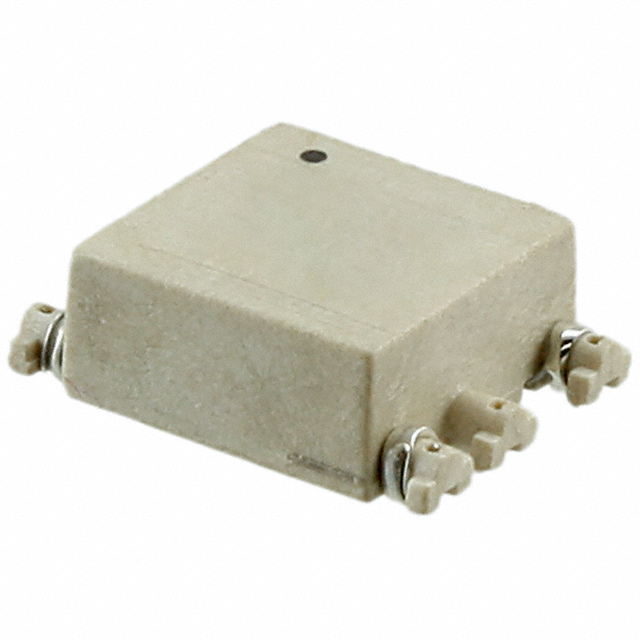

PA0185NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA0185NLT
Product Number:
PA0185NLT
MFR Standard Lead Time:
11 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1:1 980UH
Datasheet:
Descnt:
980µH Pulse Transformer 1:1 Surface Mount
In Stock
4245
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Transformer Type
-
Inductance
980µH
ET (Volt-Time)
17.2VµS
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.340" L x 0.460" W (8.64mm x 11.68mm)
Height - Seated (Max)
0.160" (4.06mm)
Operating Temperature
-40°C ~ 130°C
Documents & Media
Datasheets
PA0185NLT Datasheet
SMT Isolation Transformers Selection Guide
Other Related Documents
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
900
