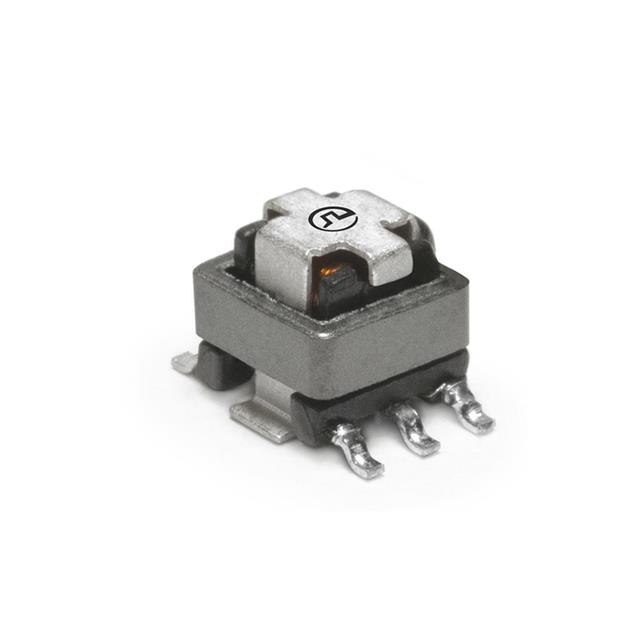

PA1005.030NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA1005.030NL
Product Number:
PA1005-030NL
MFR Standard Lead Time:
14 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:30 20A SMD
Datasheet:
Descnt:
20 A 1:30 Current Sense Transformer 20kHz ~ 1MHz 0.75mOhm Primary, 870mOhm Secondary Max 180 µH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PA1005.XXXNL
Packaging
Tray
Part Status
Active
Frequency Range
20kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
20 A
Inductance
180 µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:30
Current Ratio
-
DC Resistance (DCR)
0.75mOhm Primary, 870mOhm Secondary Max
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.217" (5.50mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Datasheets
PA1005.030NL Datasheet
SMT Current Sense Overview
Other Related Documents
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
553-PA1005.030NL
Standard Package
120
