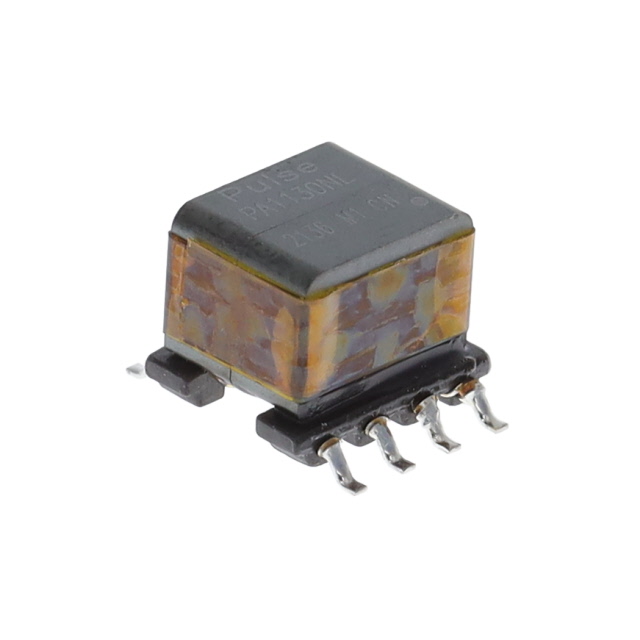

PA1130NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA1130NLT
Product Number:
PA1130NLT
MFR Standard Lead Time:
14 Weeks
Package/Case:
Detailed Description:
XFRMR 3.3V 3W 500UH POE EP7 SMD
Datasheet:
Descnt:
500µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:0.083:0.208 Surface Mount
In Stock
190
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
EP7
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
500µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:0.083:0.208
Mounting Type
Surface Mount
Size / Dimension
0.420" L x 0.525" W (10.67mm x 13.34mm)
Height - Seated (Max)
0.365" (9.27mm)
Operating Temperature
-40°C ~ 125°C
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
300
