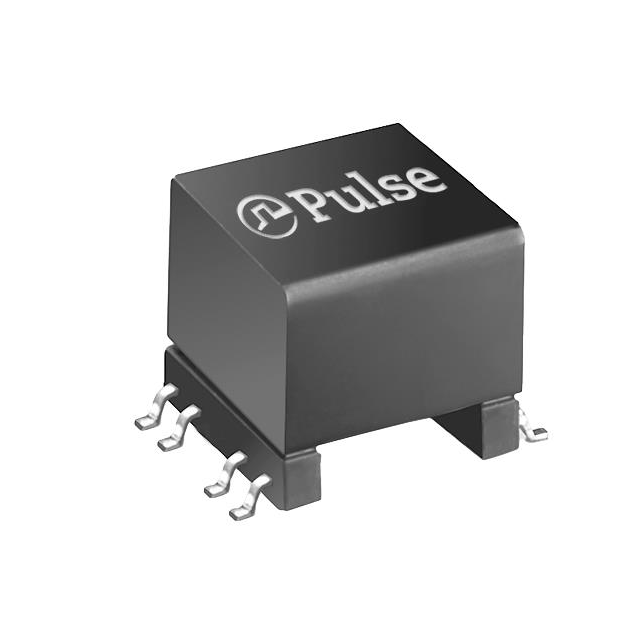

PA1277NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA1277NL
Product Number:
PA1277NL
MFR Standard Lead Time:
10 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK EP10 SMT
Datasheet:
Descnt:
20.4µH Isolation and Data Interface (Encapsulated) Pulse Transformer Surface Mount
In Stock
651
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PA1277NL
Packaging
Tray
Part Status
Active
Transformer Type
Isolation and Data Interface (Encapsulated)
Inductance
20.4µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Mounting Type
Surface Mount
Size / Dimension
0.600" L x 0.515" W (15.24mm x 13.08mm)
Height - Seated (Max)
0.451" (11.45mm)
Operating Temperature
-
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
553-PA1277NL
Standard Package
75
