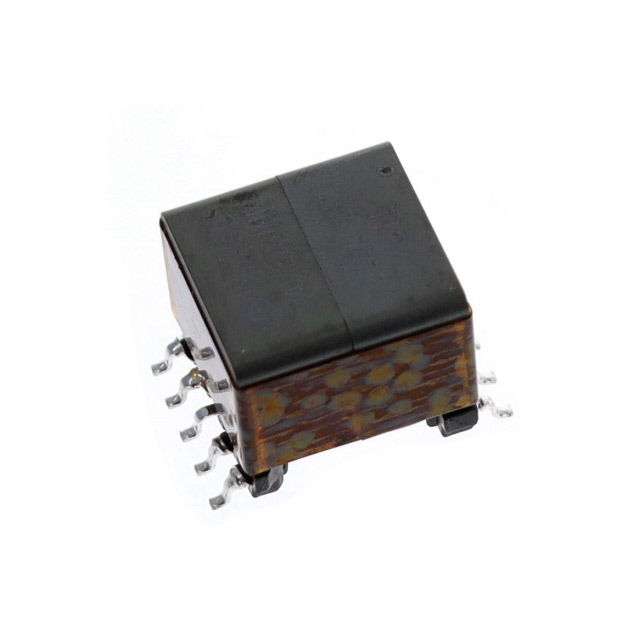

PA2649NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA2649NL
Product Number:
PA2649NL
MFR Standard Lead Time:
10 Weeks
Package/Case:
Detailed Description:
TRANSFMR 33-57VIN 12VOUT 2.5ASMD
Datasheet:
Descnt:
100.5µH Pulse Transformer Surface Mount
In Stock
4114
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Active
Transformer Type
-
Inductance
100.5µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Mounting Type
Surface Mount
Size / Dimension
0.690" L x 0.529" W (17.53mm x 13.44mm)
Height - Seated (Max)
12.45mm
Operating Temperature
-40°C ~ 130°C
Weight
-
-
Documents & Media
HTML Datasheet
Transformers EP13 Platforms
PA2649NL Drawing
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
60
