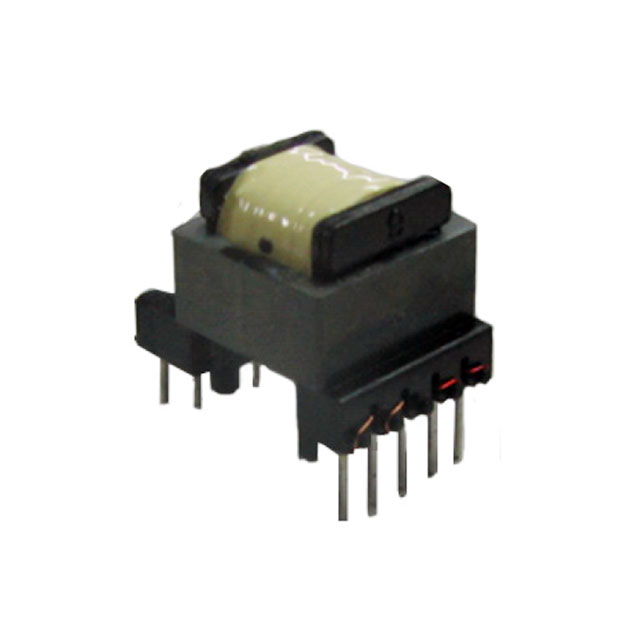

PA2718NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA2718NL
Product Number:
PA2718NL
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK CONFIG DC/DC TH
Datasheet:
Descnt:
Flyback Converters For Configurable (For DC/DC) SMPS Transformer 3000Vrms Isolation 132kHz Through Hole
In Stock
4
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Active
Type
Configurable (For DC/DC)
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
85 ~ 256V
Voltage - Auxiliary
-
Voltage - Isolation
3000Vrms
Inductance Frequency
-
Frequency
132kHz
Operating Temperature
-40°C ~ 130°C
Mounting Type
Through Hole
Size / Dimension
0.531" L x 0.768" W (13.50mm x 19.50mm)
Height - Seated (Max)
0.591" (15.00mm)
Footprint
0.531" L x 0.768" W (13.50mm x 19.50mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
100
