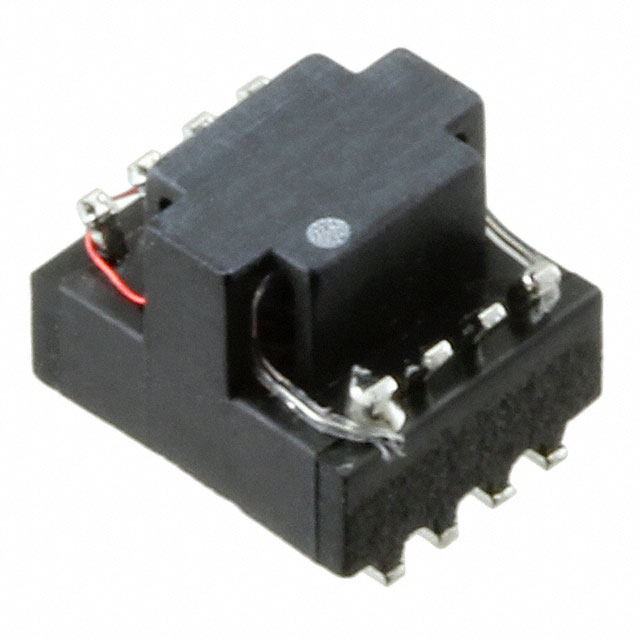

PA2777NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA2777NL
Product Number:
PA2777NL
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1:1 335.2UH
Datasheet:
Descnt:
335.2µH Pulse Transformer 1:1 Surface Mount
In Stock
950
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Active
Transformer Type
-
Inductance
335.2µH
ET (Volt-Time)
9.3VµS
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Surface Mount
Size / Dimension
0.291" L x 0.248" W (7.40mm x 6.30mm)
Height - Seated (Max)
0.232" (5.90mm)
Operating Temperature
-40°C ~ 130°C
Documents & Media
Datasheets
SMT Gate Drive Transformers
SMT Isolation Transformers Selection Guide
Environmental Information
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
120
