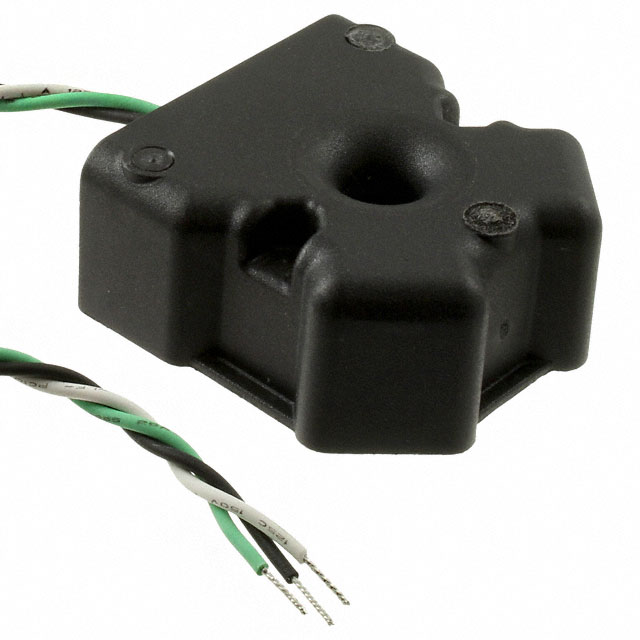

PA3208NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA3208NL
Product Number:
PA3208NL
MFR Standard Lead Time:
11 Weeks
Package/Case:
Detailed Description:
CURR XFMR ROGOWSKI 100A CHAS
Datasheet:
Descnt:
100 A Rogowski Coil Current Sense Transformer 50/60Hz 54Ohm Max 1.14 mH Chassis Mount
In Stock
47
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
Sidewinder®, PA32XXNL
Packaging
Tray
Part Status
Active
Frequency Range
50/60Hz
Type
Non-Invasive (Solid Core)
Current Rating (Amps)
100 A
Inductance
1.14 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
Rogowski Coil
Current Ratio
-
DC Resistance (DCR)
54Ohm Max
Ratings
-
Mounting Type
Chassis Mount
Size / Dimension
1.205" L x 1.189" W (30.60mm x 30.20mm)
Height - Seated (Max)
0.580" (14.73mm)
Termination Style
Wire Leads
-
Documents & Media
Environmental Information
Featured Product
PA32xxNL Series Sidewinder® Rogowski Current Sensors
PA32xxNL Series Sidewinder® Rogowski Current Sensors
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.8000
-
Additional Resources
Other Names
553-2176
Standard Package
20
