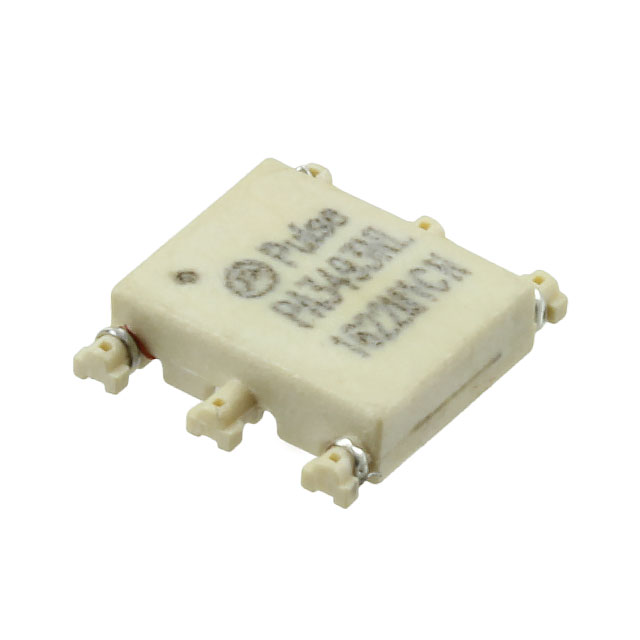

PA3493NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA3493NL
Product Number:
PA3493NL
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1.25:1 656UH
Datasheet:
Descnt:
656µH Pulse Transformer 1.25:1 Surface Mount
In Stock
1753
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
-
Inductance
656µH
ET (Volt-Time)
23VµS
Turns Ratio - Primary:Secondary
1.25:1
Mounting Type
Surface Mount
Size / Dimension
0.430" L x 0.380" W (10.92mm x 9.65mm)
Height - Seated (Max)
0.105" (2.67mm)
Operating Temperature
-40°C ~ 130°C
Documents & Media
Datasheets
SMT Gate Drive Transformers
SMT Isolation Transformers Selection Guide
Environmental Information
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
50
