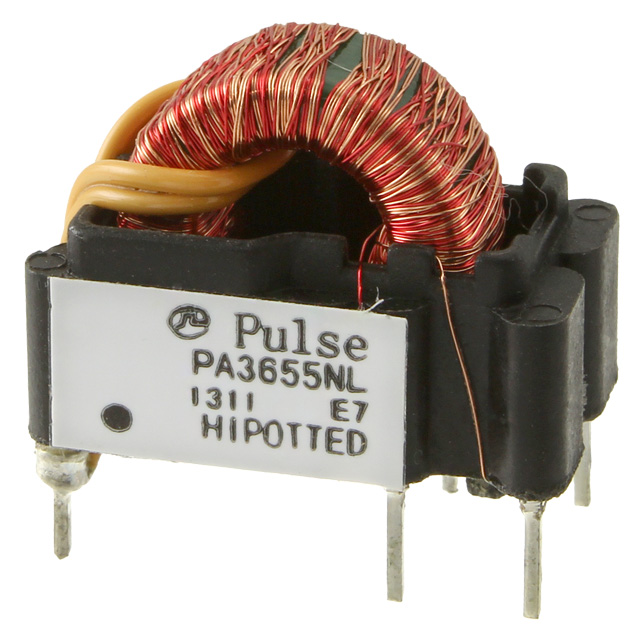

PA3655NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA3655NL
Product Number:
PA3655NL
MFR Standard Lead Time:
13 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 34A T/H
Datasheet:
Descnt:
34 A Current Sense Transformer 50kHz ~ 500kHz 15.8Ohm Primary, 1.7mOhm Secondary 76 mH Through Hole
In Stock
1158
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Active
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Current Rating (Amps)
34 A
Inductance
76 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
-
Current Ratio
200:200:1
DC Resistance (DCR)
15.8Ohm Primary, 1.7mOhm Secondary
Ratings
-
Mounting Type
Through Hole
Size / Dimension
0.810" L x 0.580" W (20.57mm x 14.73mm)
Height - Seated (Max)
0.750" (19.05mm)
Termination Style
PC Pin
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.8000
-
Additional Resources
Other Names
553-2173
Standard Package
80
