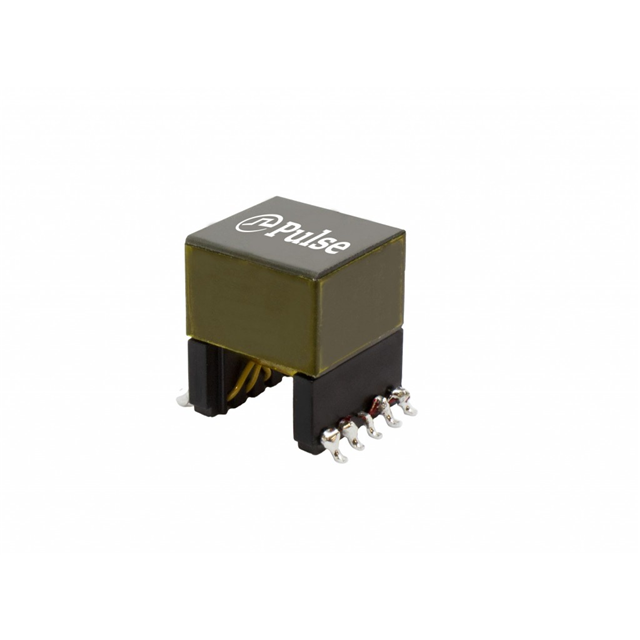

PA5000.003NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PA5000.003NLT
Product Number:
PA5000-003NLT
MFR Standard Lead Time:
13 Weeks
Package/Case:
Detailed Description:
XFMR FWD P-P DC/DC CONV 100UH SM
Datasheet:
Descnt:
Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 5000Vrms Isolation 200kHz Surface Mount
In Stock
110
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PA5000.XXXNL
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Forward, Push-Pull Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
33 ~ 75V
Voltage - Auxiliary
-
Voltage - Isolation
5000Vrms
Inductance Frequency
100µH 200kHz
Frequency
200kHz
Operating Temperature
-40°C ~ 130°C
Mounting Type
Surface Mount
Size / Dimension
0.531" L x 0.520" W (13.50mm x 13.20mm)
Height - Seated (Max)
0.650" (16.50mm)
Footprint
0.689" L x 0.531" W (17.50mm x 13.50mm)
Style
Wirewound
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
Standard Package
120
