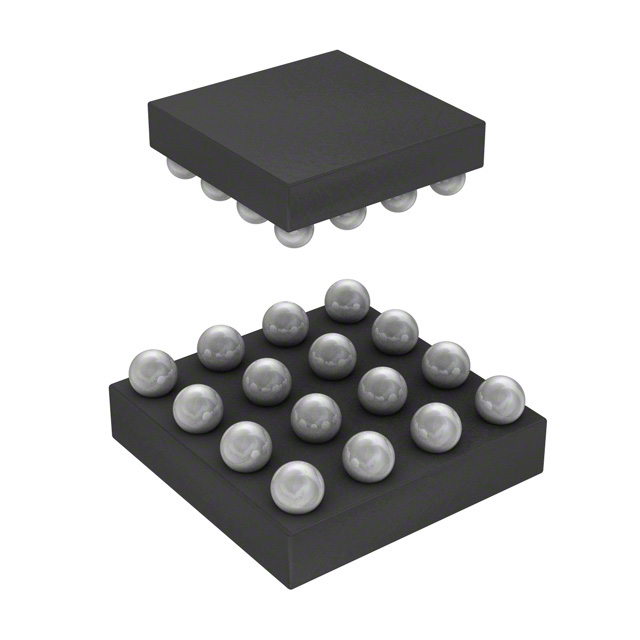

PAC1934T-I/J6CX Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
PAC1934T-I/J6CX
Product Number:
PAC1934T-I-J6CX
MFR Standard Lead Time:
4 Weeks
Package/Case:
16-WFBGA, WLCSP
Detailed Description:
IC CURRENT MONITOR 1% 16WLCSP
Datasheet:
Descnt:
Current Monitor Regulator High-Side 16-WLCSP (2.23x2.17)
In Stock
21165
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
The PAC1934T-I/J6CX from Microchip Technology is a 4-channel power/energy monitor ideal for real-time current, voltage, and power measurement in battery-powered devices, servers, and IoT edge nodes. Configure via I²C, supports rail voltages up to 32V, and delivers ±1% power accuracy.
Product Highlights:
Microchip’s PAC1934T-I/J6CX is a high-accuracy, quad-channel power monitor with 16-bit ADCs, supporting up to ±32V bus voltage and ±100A current sensing. It features real-time power/energy calculation, I²C/SMBus interface, and ultra-low power consumption—ideal for energy-efficient embedded systems.
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Function
Current Monitor
Sensing Method
High-Side
Accuracy
±1%
Voltage - Input
-0.2V ~ 32V
Current - Output
-
Operating Temperature
-40°C ~ 150°C (TA)
Mounting Type
Surface Mount
Package / Case
16-WFBGA, WLCSP
Supplier Device Package
16-WLCSP (2.23x2.17)
Base Product Number
PAC1934
Documents & Media
Datasheets
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
Featured Product
PAC1934 Power Monitoring IC
PAC193x Multi-Channel DC Power Monitors
SAMA5D2 MPU System-On-Module
PCN Design/Specification
PAC1934 21/Nov/2017
PAC1931/PAC1932/PAC1933/PAC1934 28/Aug/2019
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
