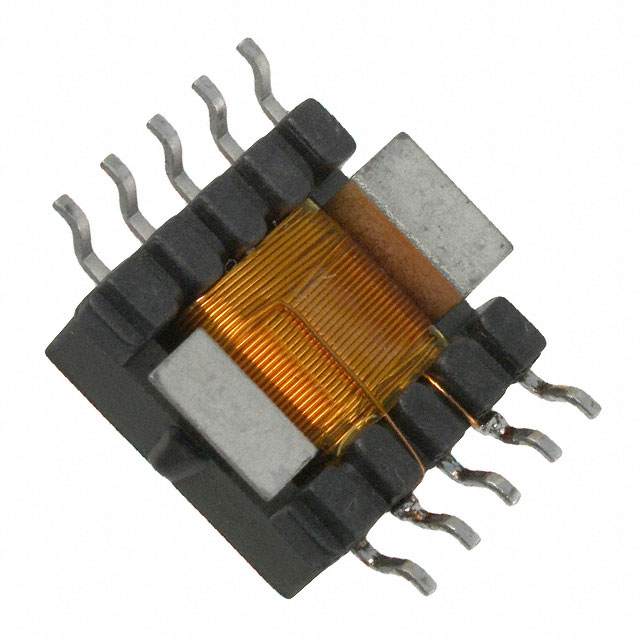

PB0027 Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PB0027
Product Number:
PB0027
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 200:1 35A SMD
Datasheet:
Descnt:
35 A 200:1 Current Sense Transformer 50kHz ~ 500kHz 2.8mOhm Primary, 2.9Ohm Secondary 22.4 mH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Obsolete
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Current Rating (Amps)
35 A
Inductance
22.4 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
200:1
Current Ratio
-
DC Resistance (DCR)
2.8mOhm Primary, 2.9Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.784" L x 0.570" W (19.91mm x 14.48mm)
Height - Seated (Max)
0.394" (10.00mm)
Termination Style
Gull Wing
Weight
0.010 lb (4.70 g)
Documents & Media
Datasheets
PCN Obsolescence/ EOL
Multiple Devices 02/Sep/2014
Multiple Devices 25/Aug/2014
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.8000
-
Additional Resources
Standard Package
70
-
