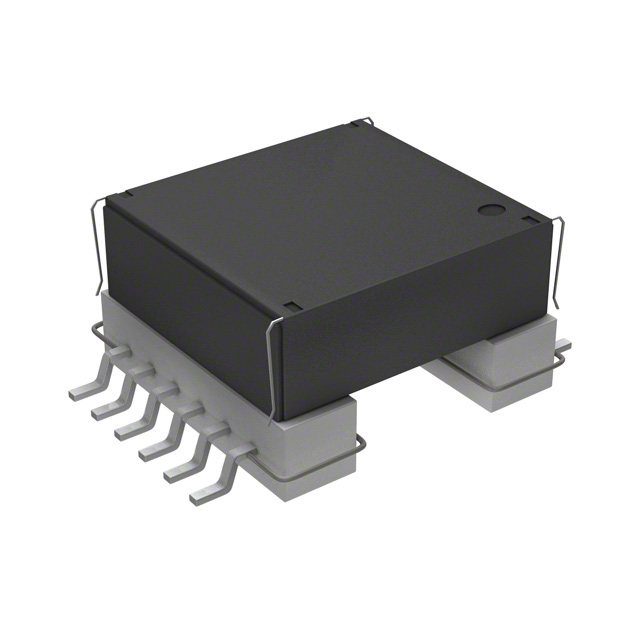

PCA20EFD-U06S002 TDK Corporation
Favorite
Compare
Manufacturer:
TDK Corporation
MFR Product Number:
PCA20EFD-U06S002
Product Number:
PCA20EFD-U06S002
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR CAP CHAR CON DC/DC 5.3UH SM
Datasheet:
Descnt:
Capacitor Charger For Configurable (For DC/DC) SMPS Transformer 500Vrms Isolation Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TDK Corporation
Series
PCA20EFD
Packaging
Tray
Part Status
Obsolete
Type
Configurable (For DC/DC)
Applications
Capacitor Charger
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
-
Voltage - Auxiliary
-
Voltage - Isolation
500Vrms
Inductance Frequency
Parallel 5.3µH 10kHz, Series 191µH 10kHz
Frequency
-
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Size / Dimension
0.866" L x 0.850" W (22.00mm x 21.60mm)
Height - Seated (Max)
0.472" (12.00mm)
Footprint
0.866" L x 1.173" W (22.00mm x 29.80mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
445-1693
Standard Package
10
