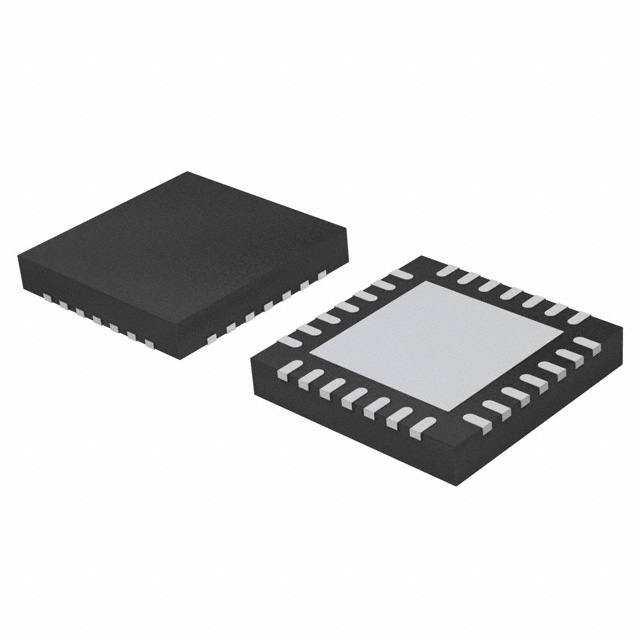

PCA9685BS,118 NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
PCA9685BS,118
Product Number:
PCA9685BS-118
MFR Standard Lead Time:
19 Weeks
Package/Case:
28-VQFN Exposed Pad
Detailed Description:
IC LED DRVR LIN PWM 25MA 28HVQFN
Datasheet:
Descnt:
LED Driver IC 16 Output Linear PWM Dimming 25mA 28-HVQFN (6x6)
In Stock
789
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
NXP USA Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Linear
Topology
-
Internal Switch(s)
Yes
Number of Outputs
16
Voltage - Supply (Min)
2.3V
Voltage - Supply (Max)
5.5V
Voltage - Output
5.5V
Current - Output / Channel
25mA
Frequency
-
Dimming
PWM
Applications
Backlight
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
28-VQFN Exposed Pad
Supplier Device Package
28-HVQFN (6x6)
Base Product Number
PCA9685
Documents & Media
Datasheets
PCA9685
LED Controllers Leaflet
Environmental Information
NXP USA Inc RoHS Cert
NXP USA Inc REACH
HTML Datasheet
PCA9685
LED Controllers Leaflet
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
