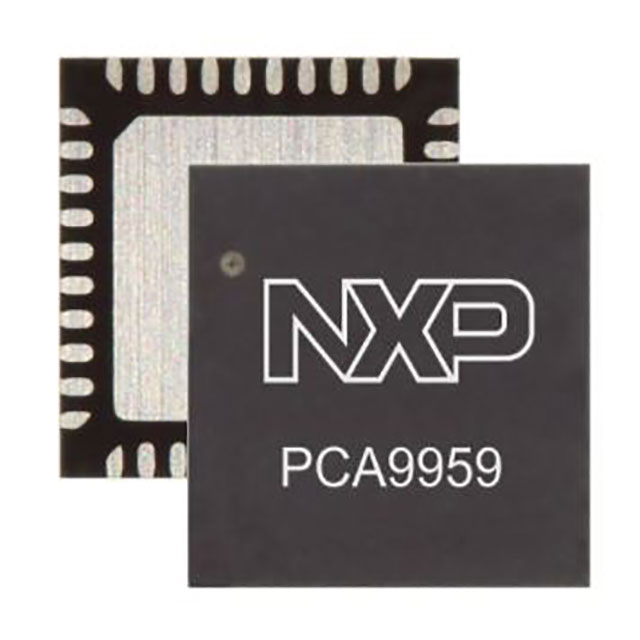

PCA9959HNMP NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
PCA9959HNMP
Product Number:
PCA9959HNMP
MFR Standard Lead Time:
15 Weeks
Package/Case:
40-VFQFN Exposed Pad
Detailed Description:
IC LED DRVR LIN DIM 63MA 40HVQFN
Datasheet:
Descnt:
LED Driver IC 24 Output Linear Constant Current Yes Dimming 63mA 40-HVQFN (5x5)
In Stock
758
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
NXP USA Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Type
Linear
Topology
Constant Current
Internal Switch(s)
No
Number of Outputs
24
Voltage - Supply (Min)
2.7V
Voltage - Supply (Max)
5.5V
Voltage - Output
0.5V ~ 5.5V
Current - Output / Channel
63mA
Frequency
20MHz
Dimming
Yes
Applications
Backlight, Lighting
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
40-VFQFN Exposed Pad
Supplier Device Package
40-HVQFN (5x5)
Base Product Number
PCA9959
Documents & Media
PCN Design/Specification
PCA9959HNMP 26/May/2022
PCA995y DS Rev 6/Dec/2021
PCN Packaging
All Dev Label Update 15/Dec/2020
Mult Dev Pkg Seal 15/Dec/2020
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
6,000
