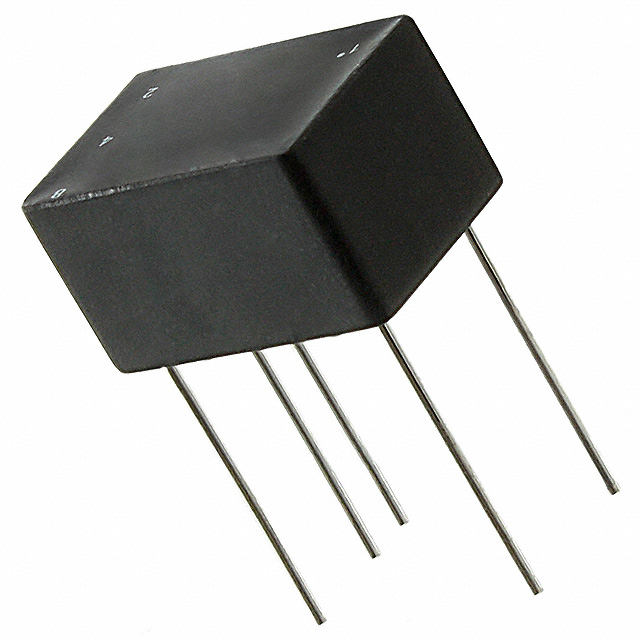

PE-5156XNL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PE-5156XNL
Product Number:
PE-5156XNL
MFR Standard Lead Time:
Package/Case:
Detailed Description:
TRANSFORMER 1:1 700VRMS
Datasheet:
Descnt:
1.2mH Pulse Transformer 1:1 Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
-
Inductance
1.2mH
ET (Volt-Time)
77VµS
Turns Ratio - Primary:Secondary
1:1
Mounting Type
Through Hole
Size / Dimension
0.650" L x 0.443" W (16.51mm x 11.25mm)
Height - Seated (Max)
0.400" (10.16mm)
Operating Temperature
0°C ~ 70°C
Weight
0.14 oz (3.99 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
45
