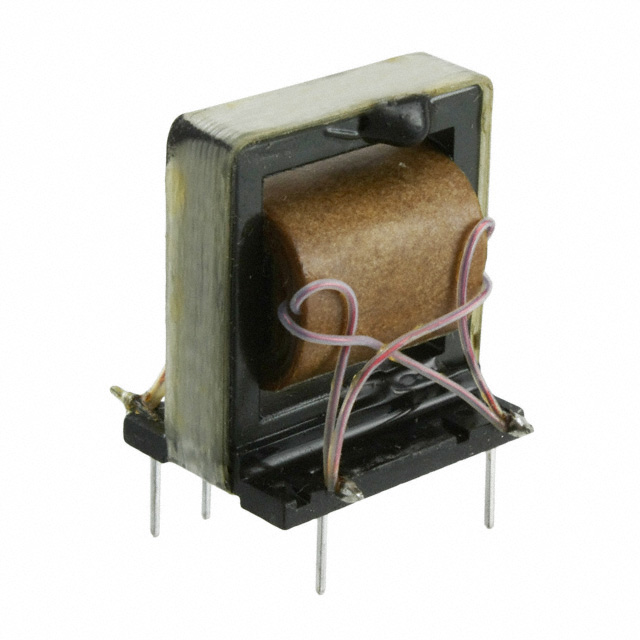

PE-63387NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PE-63387NL
Product Number:
PE-63387NL
MFR Standard Lead Time:
13 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1:1:1 1.5MH
Datasheet:
Descnt:
1.5mH Pulse Transformer 1:1:1 Through Hole
In Stock
2295
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Active
Transformer Type
-
Inductance
1.5mH
ET (Volt-Time)
320VµS
Turns Ratio - Primary:Secondary
1:1:1
Mounting Type
Through Hole
Size / Dimension
1.090" L x 0.750" W (27.69mm x 19.05mm)
Height - Seated (Max)
1.200" (30.48mm)
Operating Temperature
0°C ~ 70°C
Weight
-
-
Documents & Media
Product Drawings
Gate Drive Transformer
Schematic B
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
30
