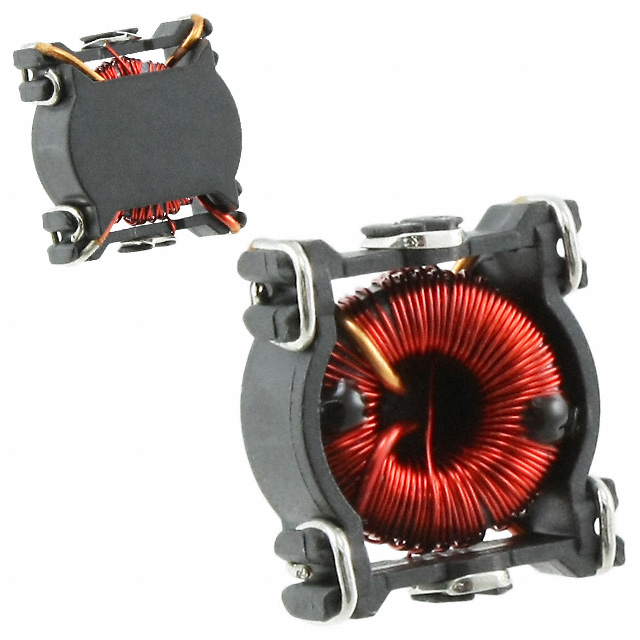

PE-68280 Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PE-68280
Product Number:
PE-68280
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:1:100 15A SMD
Datasheet:
Descnt:
15 A 1:1:100 Current Sense Transformer 50kHz ~ 500kHz 1.15mOhm Primary, 930mOhm Secondary 14.8 mH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Current Rating (Amps)
15 A
Inductance
14.8 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:1:100
Current Ratio
-
DC Resistance (DCR)
1.15mOhm Primary, 930mOhm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.495" L x 0.490" W (12.57mm x 12.45mm)
Height - Seated (Max)
0.280" (7.11mm)
Termination Style
-
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
PE68280
Standard Package
40
