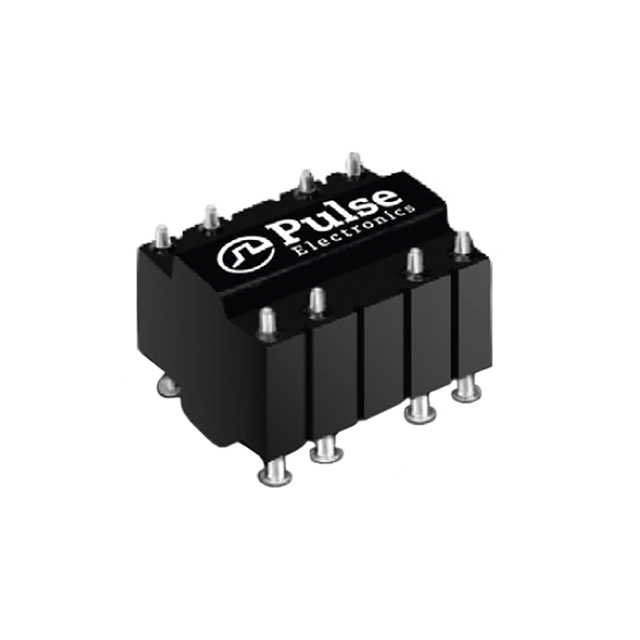

PE-68421NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PE-68421NL
Product Number:
PE-68421NL
MFR Standard Lead Time:
14 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV SMD
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation Surface Mount
In Stock
5709
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
LM2585, LM2586, LM2587, LM2588
Chipset Manufacturer
National Semiconductor
Voltage - Primary
18 ~ 36V
Voltage - Auxiliary
-
Voltage - Isolation
1500Vrms
Inductance Frequency
-
Frequency
-
Operating Temperature
-40°C ~ 130°C
Mounting Type
Surface Mount
Size / Dimension
0.970" L x 1.070" W (24.64mm x 27.18mm)
Height - Seated (Max)
0.680" (17.27mm)
Footprint
0.970" L x 1.070" W (24.64mm x 27.18mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
35
