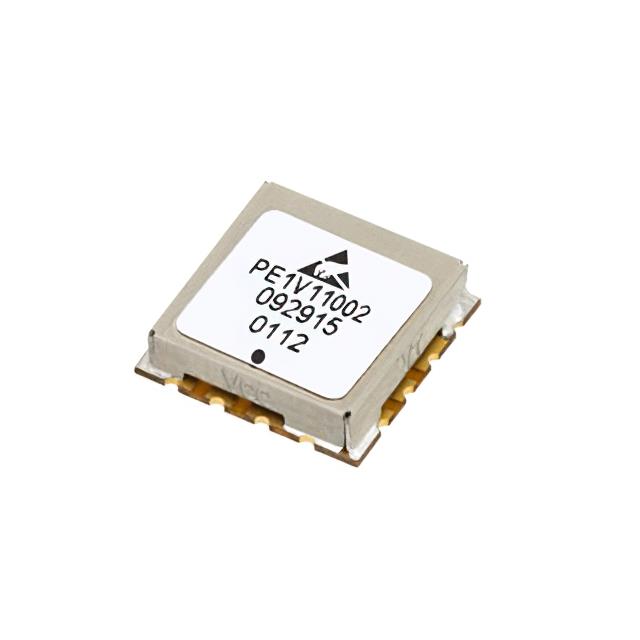

PE1V11002 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V11002
Product Number:
PE1V11002
MFR Standard Lead Time:
Package/Case:
16-SMD, No Lead
Detailed Description:
Voltage Control Oscillators
Datasheet:
Descnt:
37.5MHz Center Frequency 0 V ~ 15 V Voltage Controlled Oscillator 11.5 ±1.5 dBm -12 2nd Harmonic Typ (dBc)
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
25 ~ 50MHz
Frequency - Center
37.5MHz
Voltage - Supply
15V
Tuning Voltage (VDC)
0 V ~ 15 V
2nd Harmonic, Typ (dBc)
-12
Icc Max
18mA
Pushing (MHz/V)
0.05
Power (dBm)
11.5 ±1.5
Phase Noise Typ (dBc/Hz)
-120
Operating Temperature
-40°C ~ 85°C
Package / Case
16-SMD, No Lead
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.126" (3.20mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V11002
Standard Package
1
