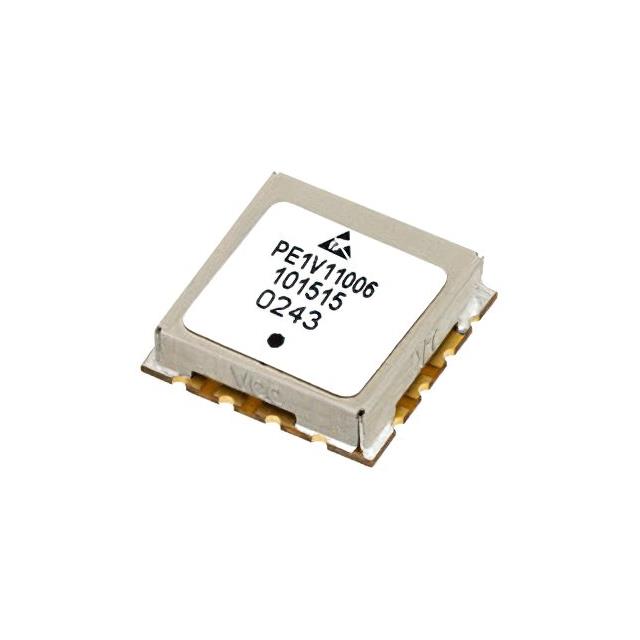

PE1V11006 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V11006
Product Number:
PE1V11006
MFR Standard Lead Time:
Package/Case:
16-SMD, No Lead
Detailed Description:
Surface Mount (SMT) Voltage Cont
Datasheet:
Descnt:
75MHz Center Frequency 0 V ~ 20 V Voltage Controlled Oscillator 12 ±2 dBm -12 2nd Harmonic Typ (dBc)
In Stock
4
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
50 ~ 100MHz
Frequency - Center
75MHz
Voltage - Supply
15V
Tuning Voltage (VDC)
0 V ~ 20 V
2nd Harmonic, Typ (dBc)
-12
Icc Max
22mA
Pushing (MHz/V)
0.05
Power (dBm)
12 ±2
Phase Noise Typ (dBc/Hz)
-115
Operating Temperature
-40°C ~ 85°C
Package / Case
16-SMD, No Lead
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.126" (3.20mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V11006
Standard Package
1
