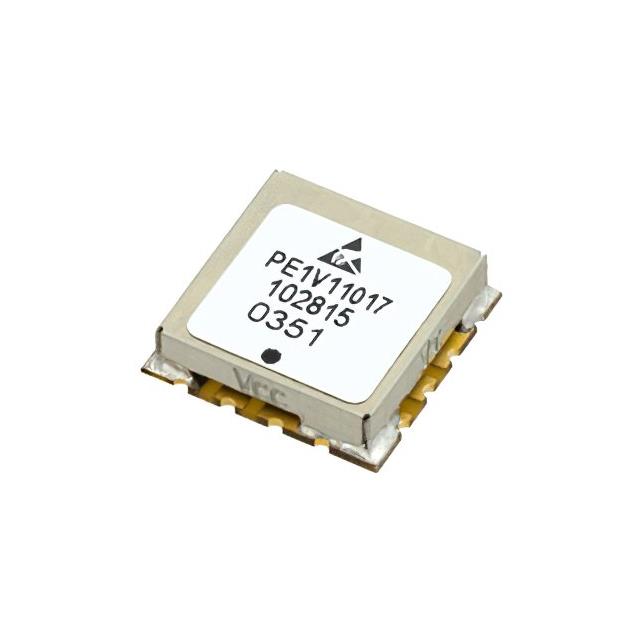

PE1V11017 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V11017
Product Number:
PE1V11017
MFR Standard Lead Time:
Package/Case:
16-SMD, No Lead
Detailed Description:
Surface Mount (SMT) Voltage Cont
Datasheet:
Descnt:
1GHz Center Frequency 0 V ~ 20 V Voltage Controlled Oscillator 11.5 -1.5, +4.5 dBm -12 2nd Harmonic Typ (dBc)
In Stock
13
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
0.8 ~ 1.5GHz
Frequency - Center
1GHz
Voltage - Supply
15V
Tuning Voltage (VDC)
0 V ~ 20 V
2nd Harmonic, Typ (dBc)
-12
Icc Max
25mA
Pushing (MHz/V)
0.8
Power (dBm)
11.5 -1.5, +4.5
Phase Noise Typ (dBc/Hz)
-95
Operating Temperature
-40°C ~ 85°C
Package / Case
16-SMD, No Lead
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.126" (3.20mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V11017
Standard Package
1
